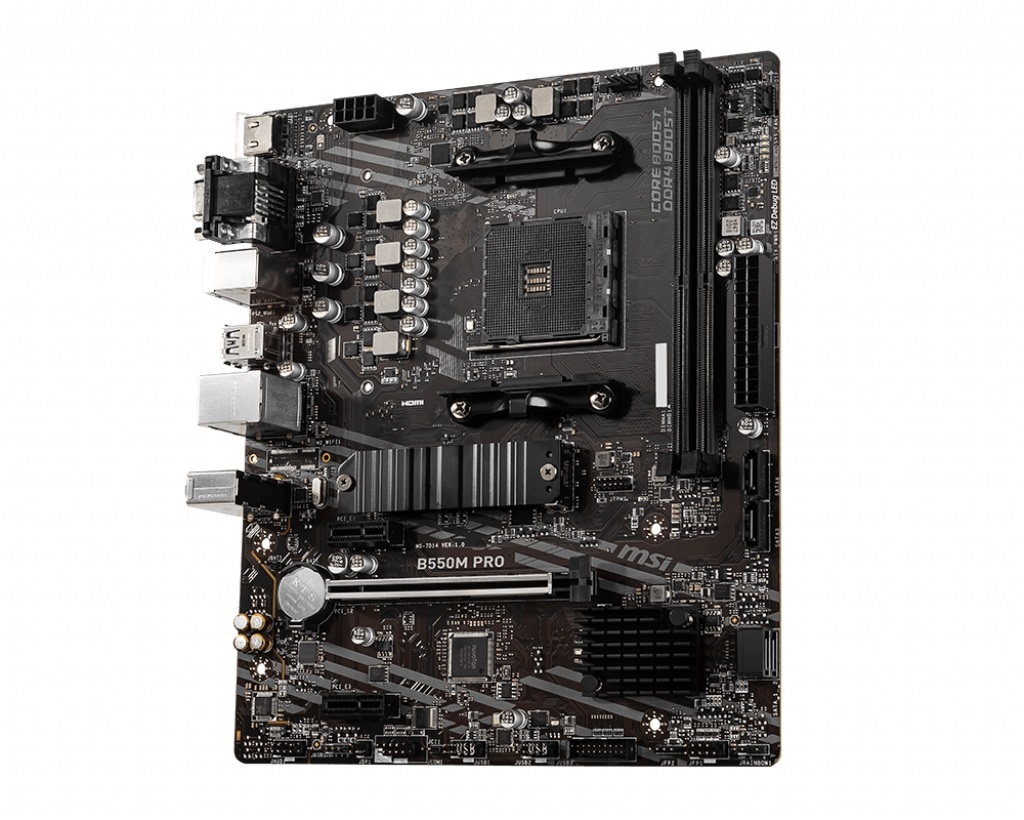

MSI B550MPRO B550M PRO AMD AM4 RYZEN B550 Max. 64GB DDR4 mATX Desktop Motherboard
$133.91
Was: $160.69
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
14416
Brand:
MSI
Mfg Sku:
B550MPRO
Share to:
Specification
MSI B550MPRO B550M PRO AMD AM4 RYZEN B550 Max. 64GB DDR4 mATX Desktop Motherboard
UPC: 824142225240
Detail Specifications
| CPU (MAX SUPPORT) Support 3rd Gen AMD RyzenTM Desktop Processors and AMD RyzenTM4000 G-Series Desktop Processors |
| SOCKET AMD Socket AM4 |
| CHIPSET AMD B550 Chipset |
| DDR4 MEMORY Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode |
| MEMORY CHANNEL Dual |
| DIMM SLOTS 2 |
| MAX MEMORY (GB) 64 |
| PCI-E X16 1 |
| PCI-E GEN Gen4 / Gen3 |
| PCI-E X1 2 |
| SATAIII 4 |
| M.2 SLOT 1 |
| RAID 0/1/10 |
| TPM (HEADER) 1 |
| LAN 1x Realtek RTL8111H Gigabit LAN |
| USB 3.2 PORTS (FRONT) 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) 4 |
| USB 2.0 PORTS (REAR) 2(Type A) |
| SERIAL PORTS(FRONT) 1 |
| AUDIO PORTS (REAR) Realtek ALC892/ALC897 Codec |
| DISPLAYPORT 1 |
| VGA 1 |
| HDMI 1 |
| DIRECTX 12 |
| FORM FACTOR M-ATX |
| OPERATING SYSTEM Support for Windows 10 64-bit |
| Item Dimension (L"x W"x H") 11 x 11 x 4 Weight 4.00 LB Warranty Information 3 Years Manufacture Warranty |
