24 GHz - 12.4 Mile Maximum Outdoor Range - MIMO Technology - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable





General Information

Manufacturer:   Ubiquiti Networks, Inc
Manufacturer Part Number:   AF-24HD
Manufacturer Website Address:   www.ubnt.com
Brand Name:   Ubiquiti
Product Line:   airFiber
Product Model:   AF24HD

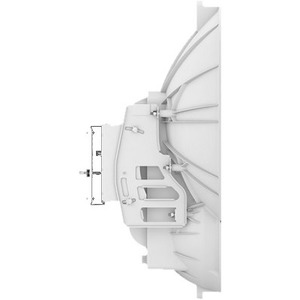

Product Name:   airFiber AF24HD Wireless Bridge
Marketing Information:

Featuring our INVICTUS™ custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.

Revolutionary Performance

Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.

Proven Links: 20+ km

The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension.

Low-Latency Carrier Backhaul

The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.

24 GHz Unlicensed Band

The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).

Product Type:   Wireless Bridge

Technical Information

Frequency Band:   24 GHz
Outdoor Antenna Range:   12.4 Mile
Wireless Transmission Speed:   2 Gbit/s
MIMO Technology:   Yes

Interfaces/Ports

Ethernet Technology:   Ethernet
Ethernet Technology:   Fast Ethernet
Ethernet Technology:   Gigabit Ethernet
Number of Network (RJ-45) Ports:   1
PoE PD Port:   Yes
VGA:   No
HDMI:   No
USB:   No
Powerline:   No
Management Port:   Yes

Physical Characteristics

Form Factor:   Pole-mountable
Height:   14.57" (370 mm)
Width:   23.35" (593 mm)
Diameter:   30.24" (768 mm)
Weight (Approximate):   17.30 kg

Miscellaneous

Package Contents:

• airFiber AF24HD Wireless Bridge
• PoE GigE Adapter
• Pole Mount Kit



Warranty

Limited Warranty:   1 Year Manufacture
