7200rpm - 256 MB Buffer





General Information

Manufacturer:   Seagate Technology
Manufacturer Part Number:   ST14000NM001G
Manufacturer Website Address:   www.seagate.com
Brand Name:   Seagate
Product Line:   Exos
Product Series:   X16
Product Model:   ST14000NM001G

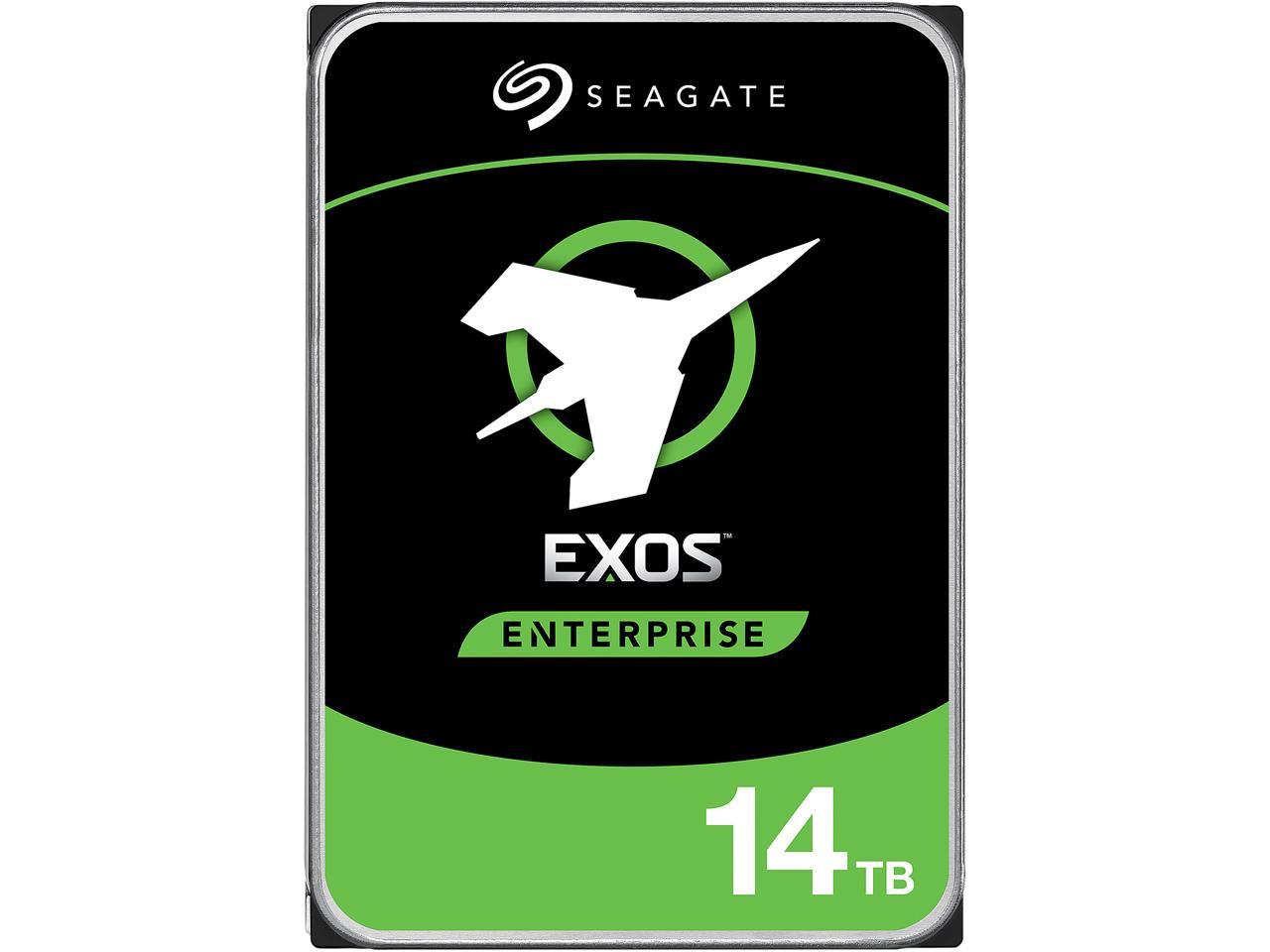

Product Name:   Exos X16 ST14000NM001G Hard Drive
Marketing Information:   Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos® X16 enterprise hard drives are the highest-capacity hard drives in the fleet.

Maximum Storage Capacity for Highest Rack Space Efficiency

• Industry's first 16 TB drive for 33% more petabytes per rack
• Highest 16 TB hard drive performance with enhanced caching, making it perfect for cloud data centre and massive scale-out data centre applications
• Hyperscale SATA model tuned for large data transfers and low latency
• PowerBalance™ feature optimises Watts/TB
• Helium sealed-drive design delivers lower total cost of ownership through lower power and weight
• Next-generation helium side-sealing weld technology for added handling robustness and leak protection
• Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
• Data protection and security: Seagate Secure™ features for safe, affordable, fast, and easy drive retirement
• Proven enterprise-class reliability backed by 5-year limited warranty and 2.5M-hr MTBF rating

Product Type:   Hard Drive

Technical Information

Storage Capacity:   14 TB
Disk Format:   512e/4Kn

Drive Performance

Spindle Speed (rpm):   7200
Buffer:   256 MB

Interfaces/Ports

Drive Interface:   SATA
Drive Interface Standard:   SATA/600

Power Description

Operating Power Consumption:   10 W

Physical Characteristics

Drive Type:   Internal
Hot Pluggable:   Yes
Height:   1.03" (26.11 mm)
Width:   4.01" (101.85 mm)
Depth:   5.79" (147 mm)
Weight (Approximate):   670 g

Miscellaneous

Device Supported:   Storage System

Warranty

Limited Warranty:   5 Years Manufacture
