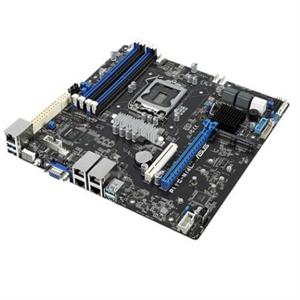

ASUS P11C-M 4L LGA 1151 / Socket H4 Intel C242 Max.64GB DDR4 PCIE SATA Micro ATX Server Motherboard

General Information

Manufacturer:   ASUS Computer International
Manufacturer Part Number:   P11C-M/4L
Manufacturer Website Address:   www.asus.com
Brand Name:   Asus
Product Model:   P11C-M/4L
Product Name:   P11C-M/4L Server Motherboard
Marketing Information:

ASUS P11C-M/4L LGA1151 DDR4 EEC/non-ECC UDIMM Mini-SAS HD M.2 C242 Server Workstation Micro ATX Motherboard for Intel® Xeon® E-Series Processors with Quad Gigabit LAN and USB 3.1

• Intel® Mehlow Platform Micro ATX Motherboard for Intel® Xeon® E-Series Processors LGA1151 socket featuring dual M.2, USB 3.1, support for ECC/non-ECC DDR4 UDIMM and Intel® Optane™ Memory
• Quad Intel® I210AT Gigabit Ethernet with teaming support and additional dedicated management port
• Flexible NVMe Storage Options switching interface between PCIe to U.2 add-on card or M.2 to U.2 adapter
• TPM-M 2.0 Ready with a 14.1 TPM header to securely store keys, digital certificates, passwords and data
• Complete IT Infrastructure Management with in-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching

Micro-ATX compact server board with multiple expandability options

P11C-M/4L is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering quad server-class Intel® Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe. The 9.6" x 9.6" micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Dual M.2 for up to 32Gbps performance and data redundancy

P11C-M/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

NVMe high-speed storage interface

P11C-M/4L adopts the first-to-market NVMe technology to reduce latency, lower power consumption and provides faster CPU to data storage performance to gain larger throughputs. By offering flexible NVMe upgrade package of switching storage interface including PCIe to U.2 add-on card or M.2 to U.2 adapter, P11C-M/4L features shared common backplane to improve drive choices.

Quad Intel® I210AT Gigabit Ethernet

P11C-M/4L features quad server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

TPM-M 2.0 ready

P11C-M/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

Comprehensive IT infrastructure management

P11C-M/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.

Product Type:   Server Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Total Processor Supported:   1
Processor Socket:   Socket H4 LGA-1151
Processor Supported:   Xeon
Processor Supported:   Celeron
Processor Supported:   Core i3
Processor Supported:   Pentium

Memory

Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory:   64 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2.40 GHz
Memory Speed Supported:   2.67 GHz

I/O Controller

Controller Type:   Serial ATA/600
Intel RSTe:   Yes
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5

Video

Onboard Video:   On-board Video Chipset
Graphics Controller Manufacturer:   ASPEED
Graphics Controller Model:   AST2500

Network & Communication

Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   2
Total Number of PCI Express Slots:   2
Number of PCI Express x8 Slots:   1
Number of PCI Express x16 Slots:   1

Interfaces/Ports

Total Number of USB Ports:   4
Number of USB 3.1 Ports:   4
VGA:   Yes

Onboard Interfaces

Number of SATA Interfaces:   6
Number of M.2 Interfaces:   2
Total Number of Onboard USB Ports:   5
Number of Onboard USB 3.0 Ports:   3

Physical Characteristics

Form Factor:   Micro ATX
Width:   9.60" (243.84 mm)
Depth:   9.60" (243.84 mm)
