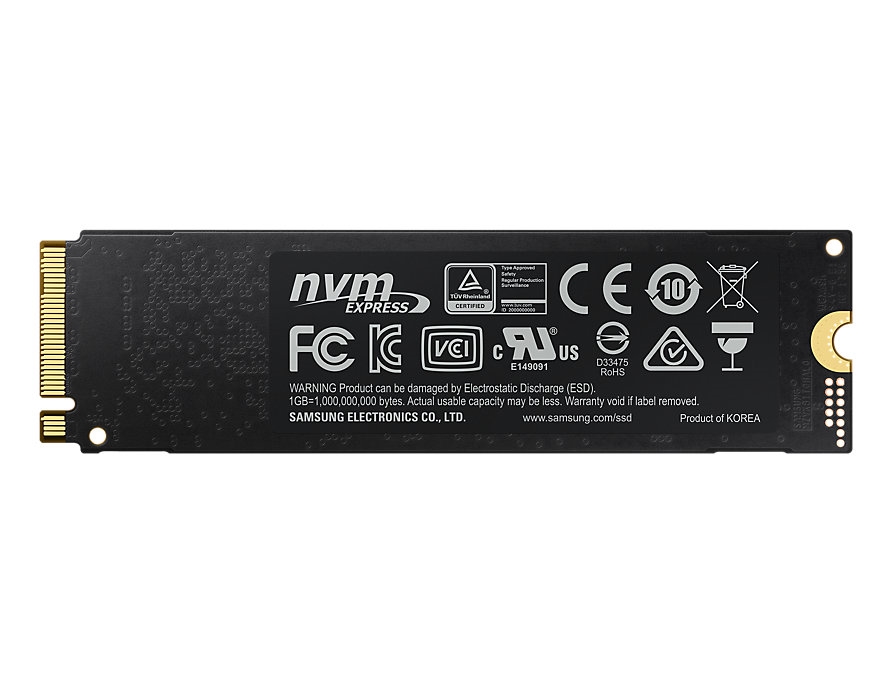

Samsung 970 EVO 2TB PCIe NVMe m.2 2280 - 3.42GB/s Read - 2.44Gb/s Write - Internal SSD MZ-V7E2T0BW
$889.11
Was: $1066.93
Availability:
In Stock
Richmond BC Warehouse:
Calgary AB Warehouse:
Markham ON Warehouse:
Guelph ON Warehouse:
Halifax NS Warehouse:
Product Code:
12928
Brand:
Samsung
Mfg Sku:
MZ-V7E2T0BW
Share to:
Specification
Samsung 970 EVO MZ-V7E2T0BW 2 TB Solid State Drive - PCI Express (PCI Express 3.0 x4) NVMe - Internal - M.2 2280 - 3.42 GB/s Maximum Read Transfer Rate - 2.44 GB/s Maximum Write Transfer Rate - 256-bit Encryption Standard Solid State Drive
Detail Specifications
| Application Client PCs |
| Interface PCIe Gen 3.0 x4, NVMe 1.3 |
| Capacity 2,000GB (Actual usable capacity may be less, due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor M.2 (2280) |
| Storage Memory Samsung V-NAND 3-bit MLC |
| Controller Samsung Phoenix Controller |
| Cache Memory Samsung 2GB Low Power DDR4 SDRAM |
| Trim Support Supported |
| Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| S.M.A.R.T. Support Supported |
| WWN Support Not supported |
| GC (Garbage Collection) Auto Garbage Collection Algorithm |
| Device Sleep Mode Support Yes |
| Sequential Read Speed Up to 3,500 MB/s (Performance may vary based on system hardware configuration) |
| Sequential Write Speed Up to 2,500 MB/s (Performance may vary based on system hardware configuration) |
| Random Read Speed Random Read (4KB, QD32): Up to 500,000 IOPS Random Read (4KB, QD1): Up to 15,000 IOPS (Performance may vary based on system hardware configuration) |
| Random Write Speed Random Write (4KB, QD32): Up to 480,000 IOPS Random Write (4KB, QD1): Up to 50,000 IOPS (Performance may vary based on system hardware configuration) |
| Average Power Consumption (system level) Average: 6 W Maximum: 10 W (Burst mode) (Actual power consumption may vary depending on system hardware configuration) |
| Power consumption (Idle) Max. 30 mW (Actual power consumption may vary depending on system hardware configuration) |
| Allowable Voltage 3.3 V +/- 5 % Allowable voltage |
| Reliability (MTBF) 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature 0 - 70 oC Operating Temperature |
| Shock 1,500 G and 0.5 ms (Half sine) |
| Installation Kit Not Available |
| Management SW Magician Software for SSD management |
| Item Dimension ( L inchxW inchxH inch) 6 x 4 x 1 |
| Weight 1 lb |
| Warranty 5 Years (Manufacture) |
