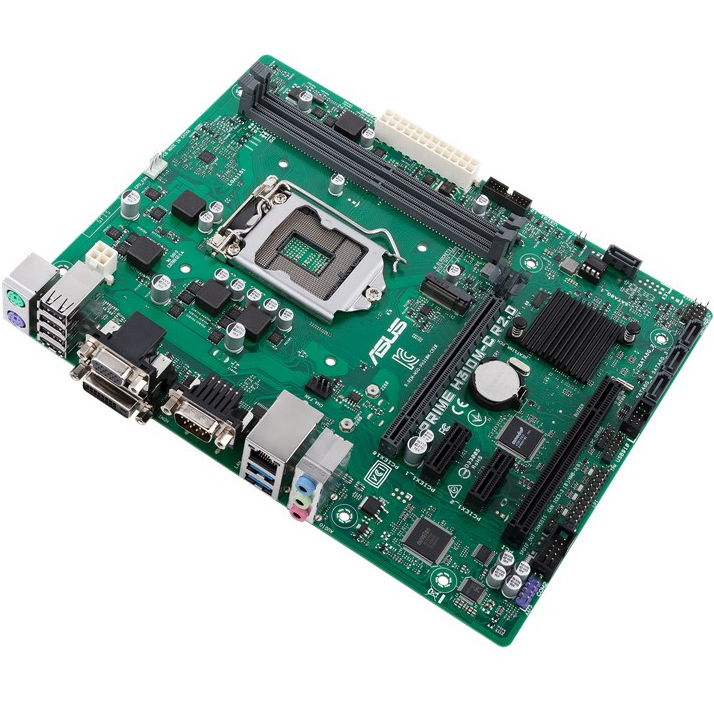

ASUS PRIME H310M-C R2.0/CSM H310 LGA 1151 Max. 32G DDR4 mATX VGA / DVI / Serial port Coffee Lake / 8th gen. Motherboard
$101.44
Was: $121.73
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12857
Brand:
ASUS TeK
Mfg Sku:
PRIME H310M-C R2.0/CSM
Share to:
Specification
Asus Prime H310M-C R2.0/CSM Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151
Micro ATX - 1 x Processor Support DDR4 SDRAM Maximum RAM - 2.67 GHz, 2.40 GHz, 2.13 GHz Memory Speed Supported - DIMM, UDIMM - 2 x Memory Slots - Serial ATA/600 Controller - CPU Dependent Video - Gigabit Ethernet - 2 x PCI Express x1 Slots - 1 x PCI Express x16 Slots - VGA - DVI - 1 x M.2 Interfaces - 4 x SATA Interfaces
Detail Specifications
| CPU Intel for 8th Generation Core Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Refer to www.asus.com for CPU support list |
| Chipset Intel H310 |
| Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) Hyper DIMM support is subject to the physical characteristics of individual CPUs. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). The maximum memory frequency supported varies by processor. DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. |
| Graphic Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz - Supports RGB with max. resolution 1920 x 1200 at 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 2 displays simultaneously |
| Expansion Slots 1 x PCIe 3.0/2.0 x16 2 x PCIe 2.0 x1 1 x PCI |
| Storage Intel H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA and PCIE mode) 4 x SATA 6Gb/s port(s) |
| LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports Intel H310 Chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) Intel H310 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board) |
| Special Features Bespoke Motherboard Design and Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion - prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45oC and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position and Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM |
| Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA and PCIE x2 mode) 1 x LPT header 2 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header 1 x Speaker connector |
| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Manageability WOL, PXE |
| Support Disc Drivers ASUS Commercial BIOS Kits ASUS Watchdog Timer |
| Form Factor uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Item Dimension (L"xW"xH") 11 x 11 x 3 Weight 3 lbs Warranty Information 3 years Manufacture |
