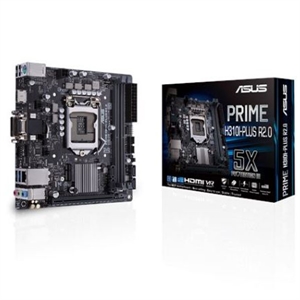

ASUS PRIME H310I-PLUS R2.0/CSM H310 LGA 1151 Max. 32GB DDR4 VGA / DVI / HDMI mini ITX Coffee Lake / 8th gen. Motherboard
$122.84
Was: $147.41
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12856
Brand:
ASUS TeK
Mfg Sku:
PRIME H310I-PLUS R2.0/CSM
Share to:
Specification
ASUS PRIME H310I-PLUS R2.0 CSM H310 LGA 1151 Max. 32GB DDR4 VGA / DVI / HDMI mini ITX Coffee Lake / 8th gen. Motherboard
Detail Specifications
| CPU Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Refer to www.asus.com for CPU support list |
| Chipset Intel H310 |
| Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). The maximum memory frequency supported varies by processor DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. |
| Graphic Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz / 25600 x 1600 at 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz - Supports D-sub with max. resolution 1920 x 1200 at 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| Storage Intel H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA and PCIE mode) 4 x SATA 6Gb/s port(s), gray, |
| LAN Realtek RTL8111H, 1 x Gigabit LAN |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports Intel H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel H310 Chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) |
| Special Features ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI+ VRM: 5 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 20 Gb/s data transfer speeds) |
| Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA PCIE x4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x System panel connector 1 x Speaker connector 1x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB/CNVi mode |
| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability WOL by PME, PXE |
| Operating System Windows 10 64-bit |
| Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Item Dimension (L"xW"xH") 9 x 8 x 3 Weight 2 lbs Warranty Information 3 years Manufacture |
