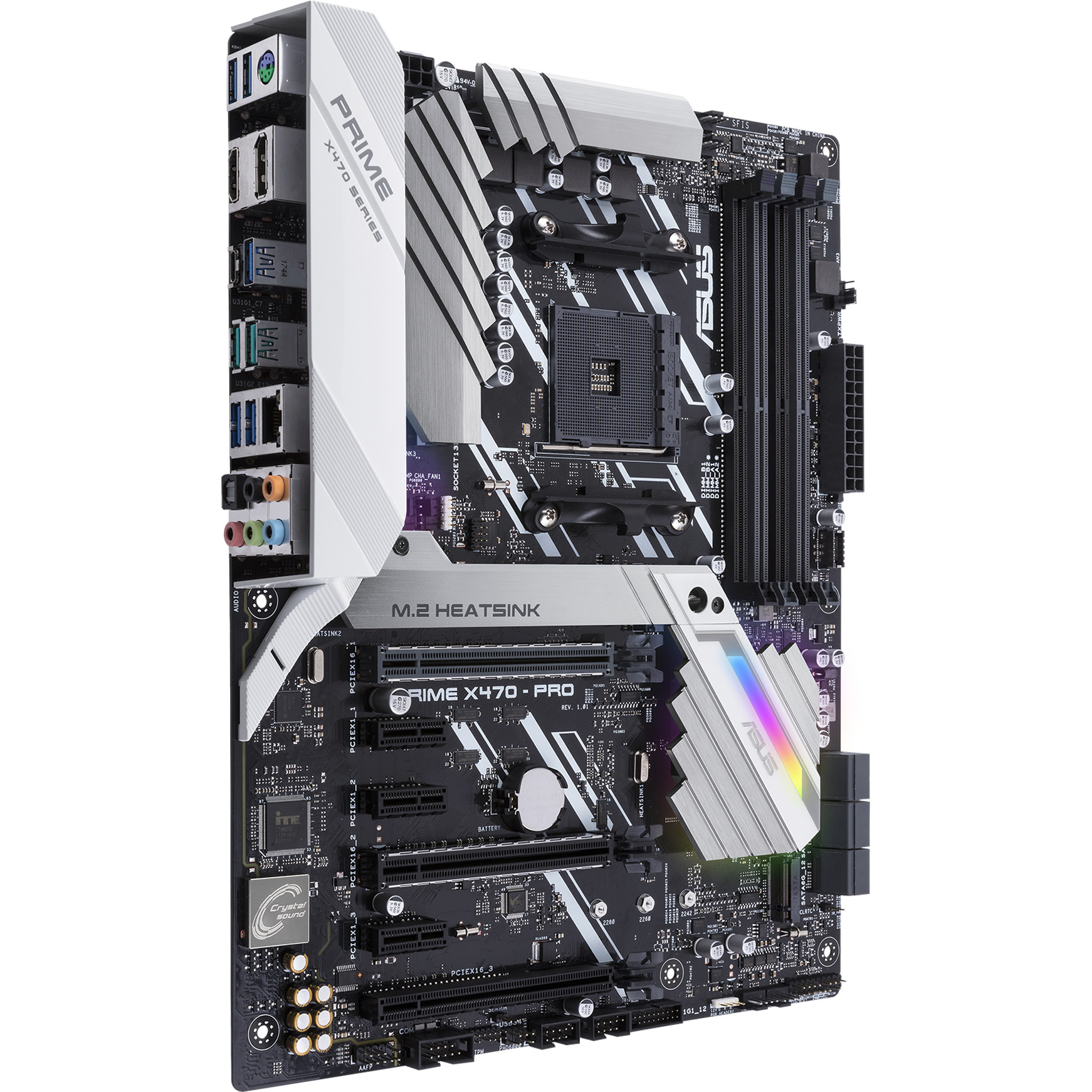

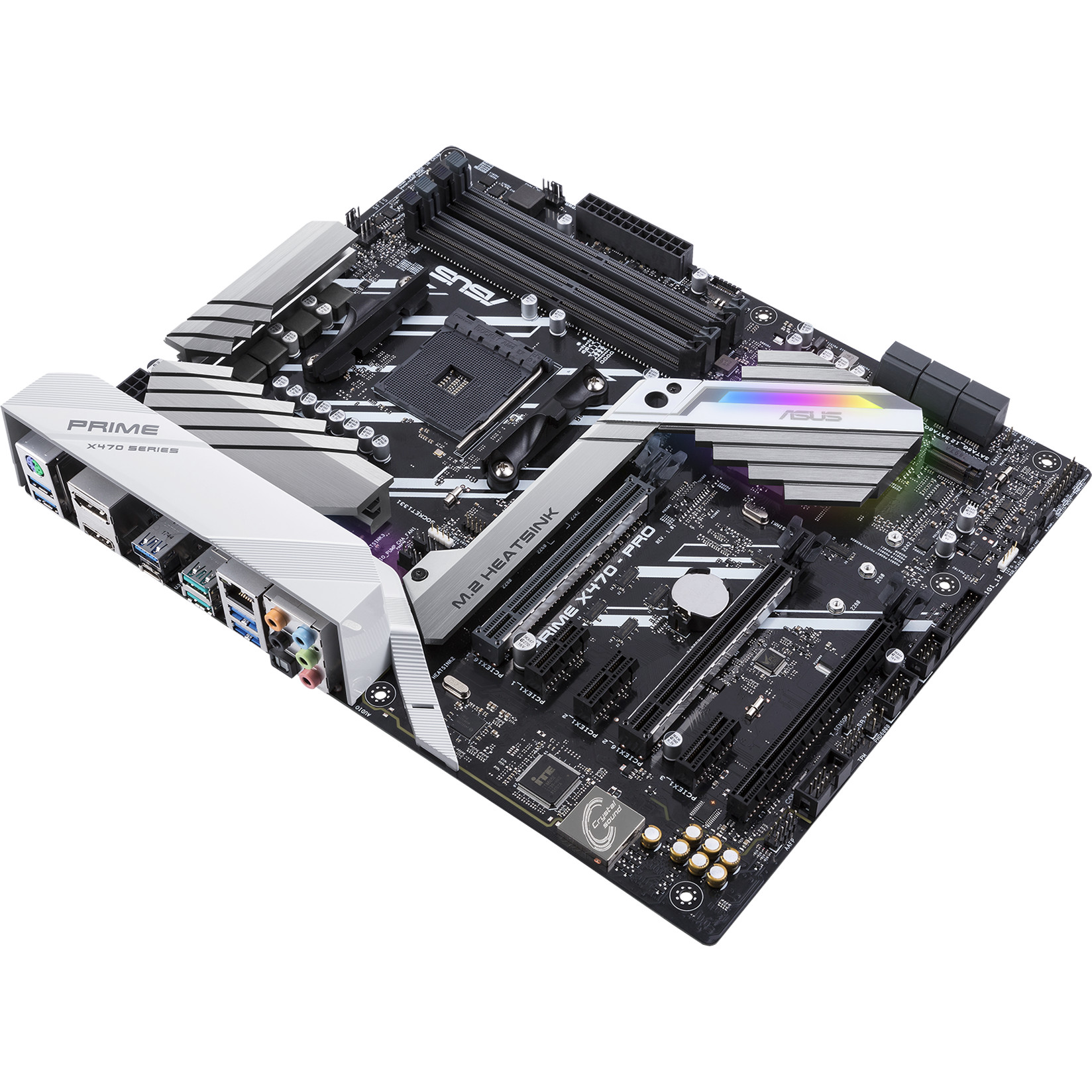

ASUS PRIME X470-PRO AMD Ryzen 2 AM4 DDR4 Displayport HDMI M.2 USB 3.1 ATX Ryzen 2nd generation Motherboard

• Primary Information

  Mainboard Form Factor:	ATX
  Compatible Processors:	AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors
  Mainboard / Chipset Type:	AMD X470
  Audio Output:	Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
  Networking Type:	Intel I211AT Gigabit LAN
  Multi GPU Supported:	NVIDIA 2-Way SLI Technology, AMD CrossFireX Technology





• Dimensions & Miscellaneous

  Width:	12.00 Inch
  Depth:	9.60 Inch
  Model:	PRIME X470-PRO





• Processor

  Processor / Socket Type:

  Socket AM4





• Memory

  RAM / Technology:	DDR4 SDRAM
  RAM / Max Supported Size:	64 GB





• Expansion

  Expansion Slots Total (Free):

  2 x PCIe 3.0 x16 (x16 or dual x8) , 1 x PCIe 3.0 x16 (x8 mode), 1 x PCIe 2.0 x16 (max at x4 mode), 3 x PCIe 2.0 x1





• Service & Support

  Service & Support Type:

  3 Years Warranty (Manufacture)
