General Information

Manufacturer:   D-Link Systems, Inc
Manufacturer Part Number:   DWL-6600AP
Manufacturer Website Address:   www.dlink.ca
Brand Name:   D-Link
Product Model:   DWL-6600AP

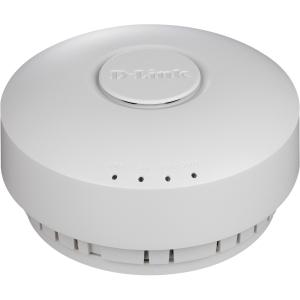

Product Name:   DWL-6600AP Wireless Access Point
Marketing Information:   The DWL-6600AP Unified N Dual-band PoE Access Point is a best-in-class indoor access point designed specifically for business-class environments. With high data transmission speeds and access point load balancing, the DWL-6600AP offers high-quality and reliable wireless service. Versatile and powerful, the DWL-6600AP can be flexibly deployed as a standalone wireless access point or as a managed access point controlled by a D-Link® Unified Wireless Switch or Wireless Controller. Businesses can start with standalone mode deployment, then migrate to a centrally managed system anytime later.
Product Type:   Wireless Access Point

Technical Information

Wireless LAN Standard:   IEEE 802.11n
ISM Band:   Yes
UNII Band:   Yes
ISM Maximum Frequency:   2.40 GHz
UNII Maximum Frequency:   5 GHz
Antenna Gain:   5 dBi
Antenna Gain:   6 dBi
Wireless Transmission Speed:   300 Mbit/s
Wireless Security:

• 64/128-bit WEP
• WPA
• WPA2
• AES
• RADIUS
• IEEE 802.1x
• IEEE 802.11i
• SSH
• MAC Address Filtering



Interfaces/Ports

Ethernet Port:   Yes
Fast Ethernet Port:   Yes
Gigabit Ethernet Port:   Yes
10Gigabit Ethernet Port:   No
Number of Network (RJ-45) Ports:   1
Network (RJ-11):   No
PoE (RJ-45) Port:   Yes
VGA:   No
HDMI:   No
Audio Line Out:   No
Serial Port:   No
USB:   No
Powerline:   No
Management Port:   Yes

Management & Protocols

Management:

• Web Based Management
• SNMP
• Telnet
• VLAN IEEE 802.1Q



Power Description

Input Voltage:   12 V DC
Power Source:   AC Adapter
Power Source:   PoE

Physical Characteristics

Diameter:   3.1" (77.5 mm)

Miscellaneous

Additional Information:

4 x Internal Antennas



Warranty

Limited Warranty:   Lifetime Manufacture
