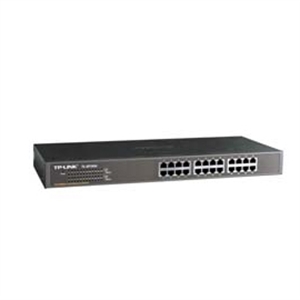

TP-Link Network TL-SF1024 24Port 10/100M Switch RJ45 Ports 1U 19inch Retail Rack-Mountable Steel Case
Key Features
| MAC Address Table Size: |
8K |
| Manufacturer Warranty: |
2 years warranty |
| Device Type: |
Rackmount Switch |
| Compliant Standards: |
IEEE 802.3, IEEE 802.3u and IEEE 802.3x |
| Power Device: |
100 - 240 VAC , 50/60 Hz |
| Data Link Protocol: |
CSMA/CD, TCP/IP |
| Status Indicators: |
Power, Link/Act, 100Mbps |
Detail Specifications
| |
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode |
| |
Supports MAC address auto-learning and auto-aging |
| |
LED indicators for monitoring power, link, activity, 100Mbps |
| |
Standard 19-inch rack-mountable steel case |
| |
Internal universal power supply |
| |
Standards and Protocols : IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP |
| |
Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode |
| |
Backbound Bandwidth : 4.8Gbps |
| |
Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port |
| |
Transmission Method : Store-and-Forward |
| |
Ports : 24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
| |
Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m) |
| |
LED Indicators : Power, Link/Act, 100Mbps |
| |
Safety and Emission : FCC, CE |
| |
Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing |
| |
Power : 100-240VAC, 50/60Hz |
| |
Dimensions (WxDxH) : 17.3 x 7.1 x 1.7 in. (440x180x44 mm) |
| |
Packing Dimension LxWxH : 21 x 4 x 10 inch |
