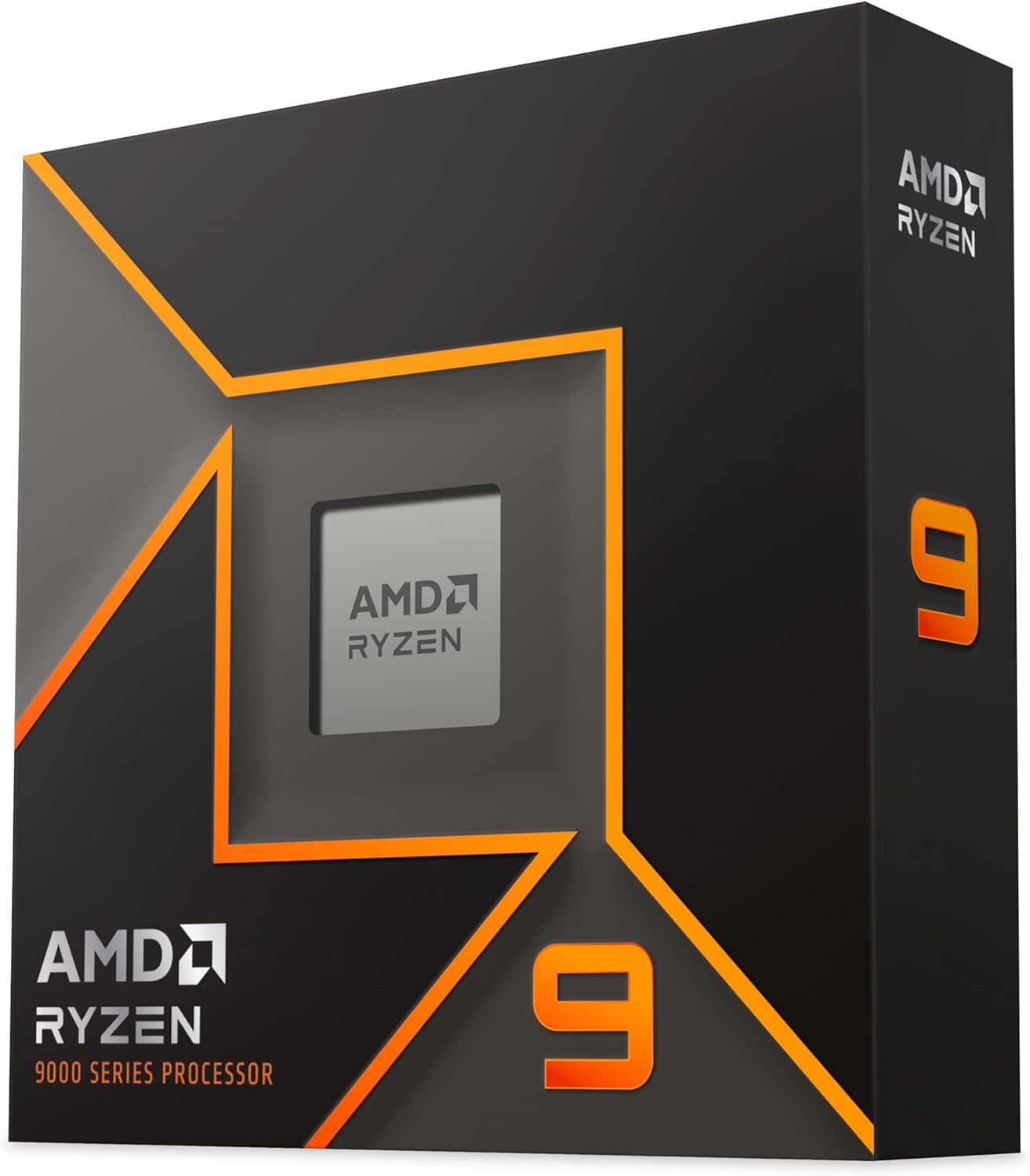

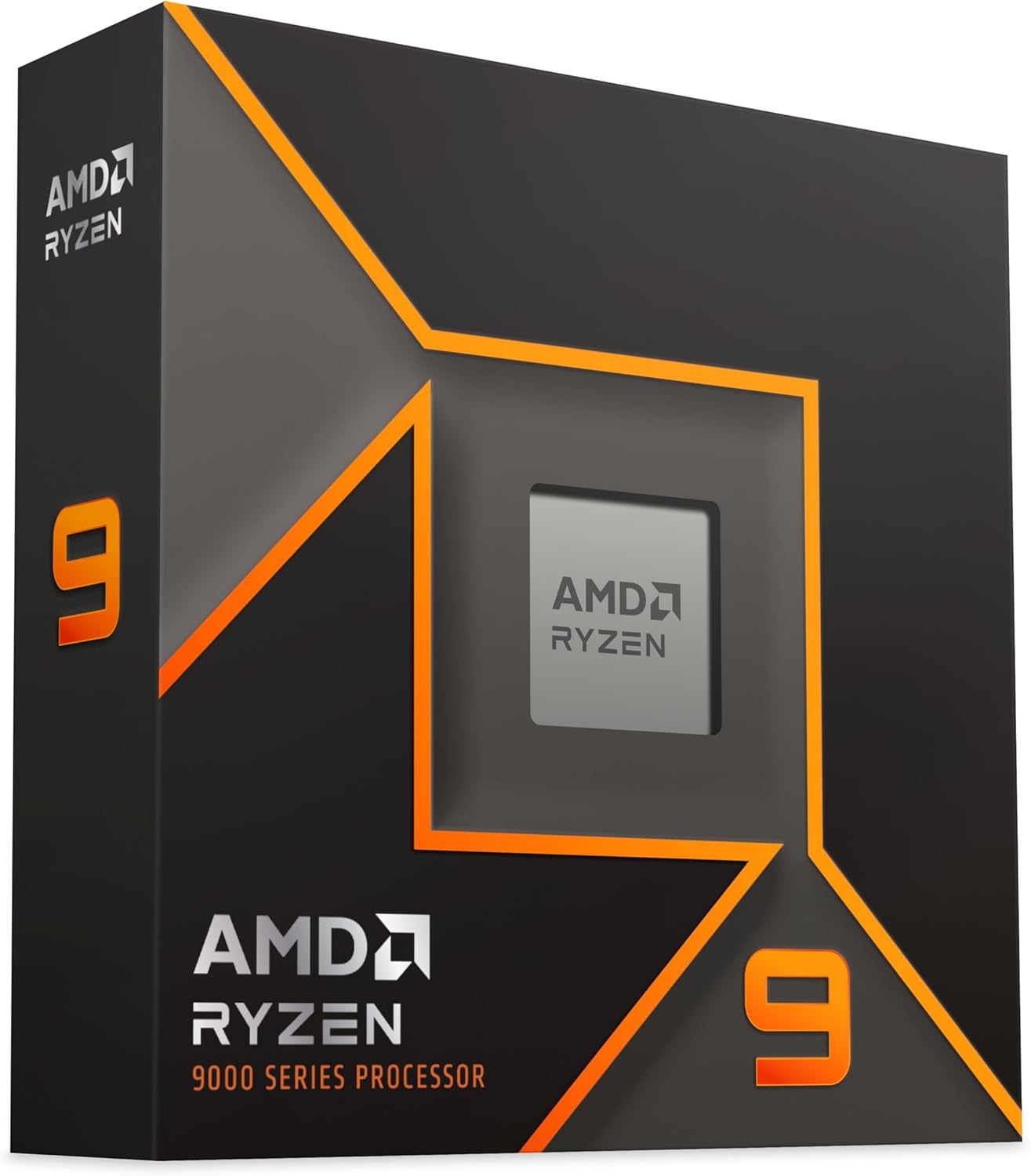

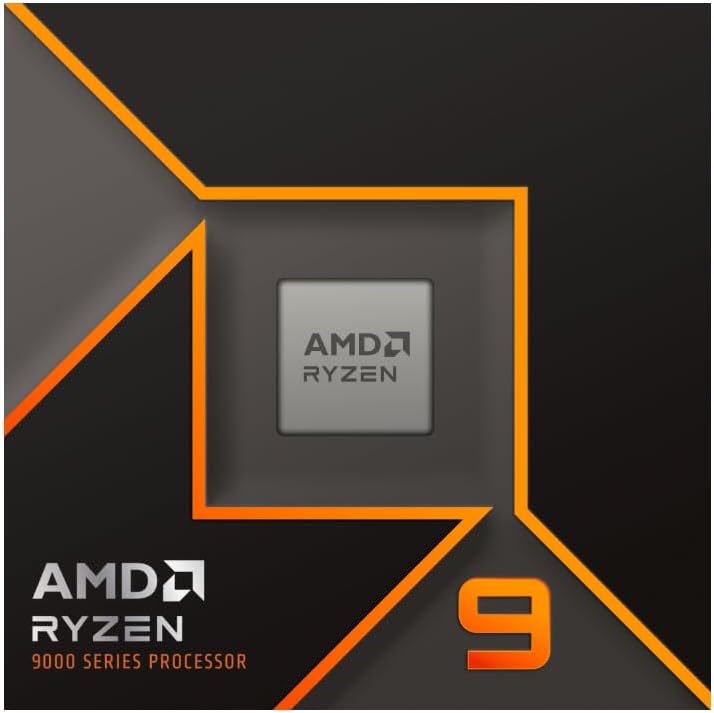

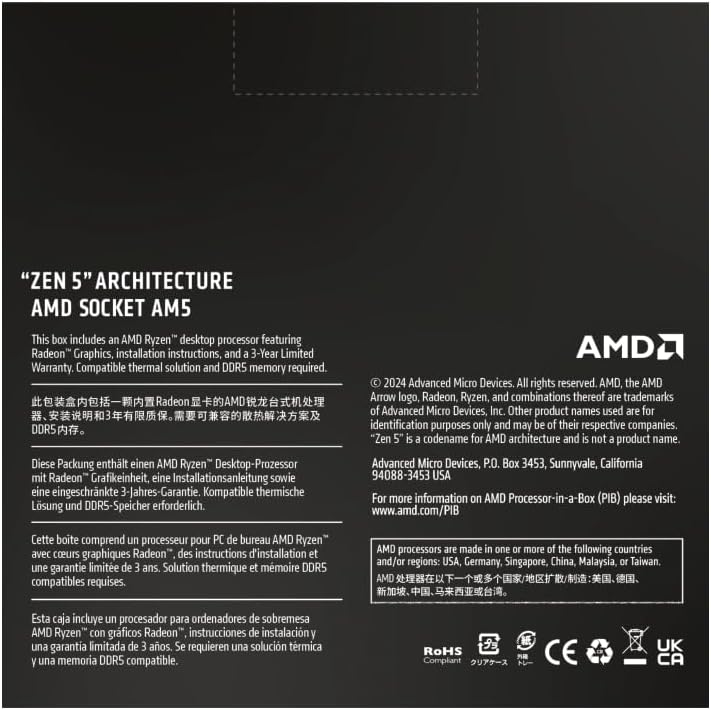

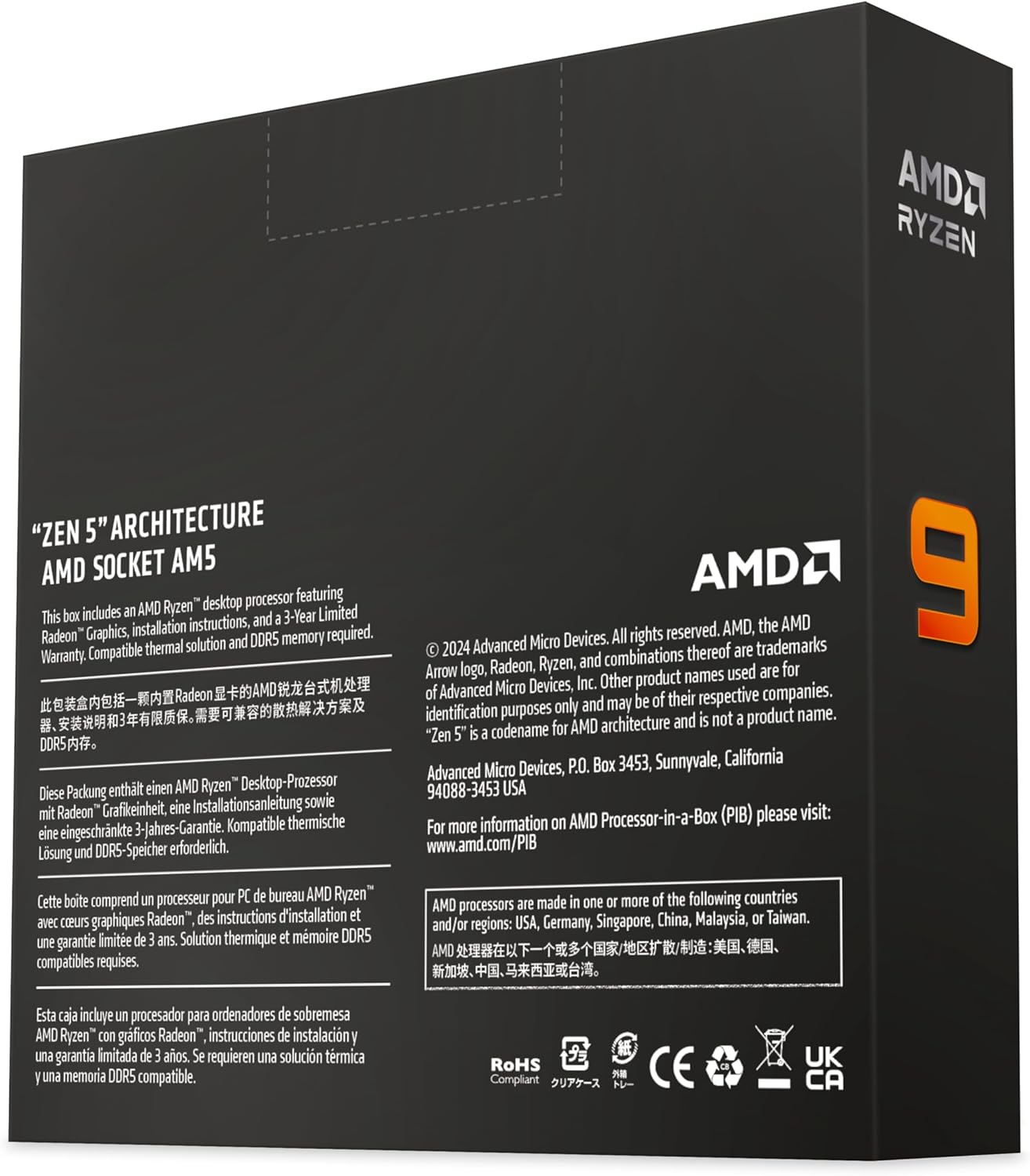

AMD Ryzen 9 9950X 100-100001277WOF 16 Core 5.7GHz AM5 80MB 32 Thread unlocked Processor
$639.95
Was: $767.94
Availability:
In Stock
Richmond BC Warehouse:
2
Toronto ON Warehouse:
1
Product Code:
15006
Brand:
AMD
Mfg Sku:
100-100001277WOF
Share to:
Specification
AMD Ryzen 9 9950X 100-100001277WOF 16 Core 5.7GHz AM5 80MB 32 Thread unlocked Processor
UPC: 730143315272
Detail Specifications
| General Specifications Name AMD Ryzen 9 9950X Family Ryzen Series Ryzen 9000 Series Form Factor Desktops , Boxed Processor Market Segment Enthusiast Desktop AMD PRO Technologies No Regional Availability Global Former Codename Granite Ridge AM5 Architecture Zen 5 Number of CPU Cores 16 Multithreading (SMT) Yes Number of Threads 32 Max. Boost Clock Up to 5.7 GHz Base Clock 4.3 GHz L1 Cache 1280 KB L2 Cache 16 MB L3 Cache 64 MB Default TDP 170W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 3 Unlocked for Overclocking Yes AMD EXPO Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen Master Support Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Recommended Cooler Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax) 95oC Launch Date 08/15/2024 OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity Native USB 3.2 Gen 2 (10Gbps) 4 Native USB 2.0 (480Mbps) 1 PCI Express Version PCIe 5.0 Native PCIe Lanes (Total/Usable) 28 , 24 Additional Usable PCIe Lanes from Motherboard X870E8x Gen4 X8704x Gen4 X670E12x Gen4 X67012x Gen4 B650E8x Gen4 B6508x Gen4 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 192 GB System Memory Subtype UDIMM Max Memory Speed 2x1RDDR5-5600 2x2RDDR5-5600 4x1RDDR5-3600 4x2RDDR5-3600 ECC Support Yes (Requires mobo support) |
| Graphics Capabilities Graphics Model AMD Radeon Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C DisplayPort Alternate Mode Yes |
| Key Features Supported Technologies AMD EXPO Technology , AMD Ryzen Technologies |
| Item Dimension (L"xW"xH") 5 x 2 x 5 Weight 1 lb Warranty Information 3 years Manufacture |
