ASUS TUF Gaming X870-PLUS WiFi AMD AM5 X870 ATX Motherboard, 16+2+1, 80A SPS Power Stages, DDR5, PCIe 5.0 Ready, Four M.2 Slots, Wi-Fi 7, 2.5Gb LAN, HDMI, USB4® 40Gbps, SATA 6 Gbps, USB 20Gbps Type-C

UPC Code: 197105723603

• Primary Information

  Mainboard Form Factor:	ATX
  Compatible Processors:	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
  Audio Output:	Realtek ALC1220P

• Processor

  Processor / Socket Type:

  Socket AM5

• Memory

  RAM / Technology:	DDR5
  Data Integrity Check:	ECC; Non-ECC
  RAM / Max Supported Size:	256 GB

• Expansion

  Expansion Slots Total (Free):	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode). AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode). AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode).

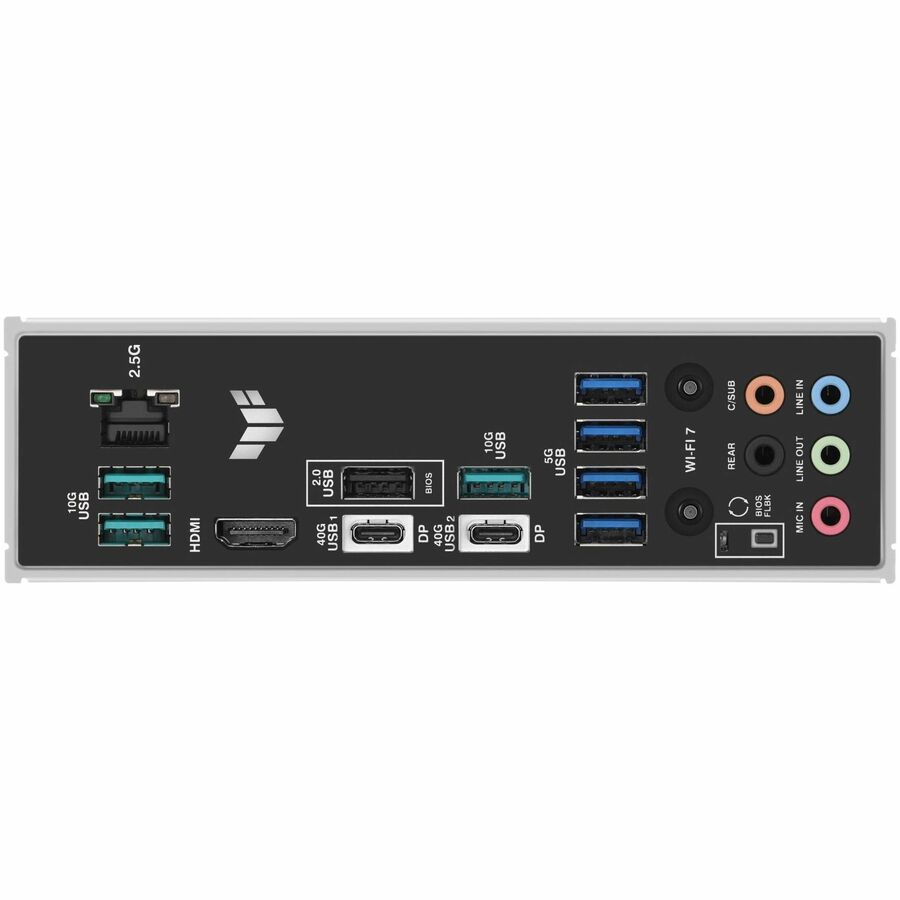

  Interfaces & Connections:	2 x USB4 (40Gbps) (2 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks

• Dimensions & Miscellaneous

  Width:	12 Inch
  Depth:	9.6 Inch

• Service & Support

  Service & Support Type:

  3 Years Manufacture
