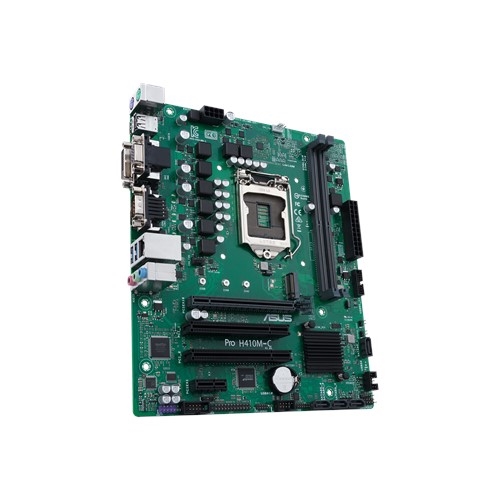

ASUS PRO H410M-C/CSM LGA 1200 Intel 10th Gen H410 Max 64GB PCI Express HDMI/ DVI-D/ D-Sub mATX motherboard
$114.97
Was: $137.96
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
14072
Brand:
ASUS TeK
Mfg Sku:
PRO H410M-C/CSM
Share to:
Specification
ASUS PRO H410M-C/CSM LGA 1200 H410 Max 64GB PCI Express HDMI/ DVI-D/ D-Sub mATX motherboard
Detail Specifications
| CPU Intel Socket 1200 for 10th Gen Intel CoreTM, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset Intel H410 |
| Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem 10th Gen Intel CoreTMi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic Integrated Graphics Processor 1 1 x D-Sub 1 x DVI-D 1 x HDMI 1.4b Graphics specifications may vary between CPU types. |
| Expansion Slots 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel H410 Chipset 1 x PCIe 3.0/2.0 x1 2 x PCI |
| Storage Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA and PCIE mode)2 4 x SATA 6Gb/s port(s) |
| LAN Intel I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard |
| Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC 3 - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| USB Ports Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Special Features Bespoke Motherboard Design and Business Focused Features : - Overcurrent Protection: Short circuit prevention, protects your system - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion - prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45oC and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage |
| Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
| Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode) 1 x SPI TPM header 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x LPC Debug header |
| Accessories Users manual 1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS 128Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME, PXE |
| Operating System Windows 10 64-bit |
| Form Factor mATX Form Factor 9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm ) |
| Note 1 Supports up to 2 displays simultaneously 2 When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used. 3 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
| Item Dimension (L"x W"x H") 11 x 11 x 3 Weight 3.00 LB Warranty Information 3 years Manufacture Warranty |
