General Information

Manufacturer:   Tripp Lite
Manufacturer Part Number:   RS-1215-RA
Manufacturer Website Address:   www.tripplite.com
Brand Name:   Tripp Lite
Product Name:   Power Strip 120V AC

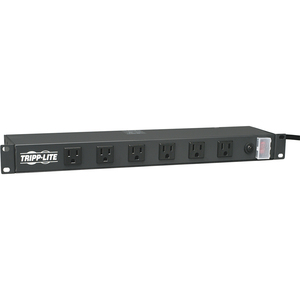

Marketing Information:   Tripp Lite's RS-1215-RA Power Strip offers 15A capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19-in. rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Features 12 NEMA5-15R outlets (6 front/6 rear) placed at a right angle (with ground pin at bottom), 15-ft. AC power cord and lighted power switch with cover that prevents risk of accidental turn-off.
PLUG/OUTLETS: Input: NEMA 5-15P
Output: 12 x NEMA 5-15R (6 front/6 rear)
ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)
FORMAT: 19-in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more
Product Type:   Power Strip

Technical Information

Plug/Connector Type:   NEMA 5-15P
Receptacles:   12 x NEMA 5-15R
Cord Length:   15 ft
Circuit Breaker:   Yes

Power Description

Input Voltage:   120 V AC
Maximum Output Voltage:   120 V AC
Maximum Input Current:   15 A
Maximum Frequency:   60 Hz
Power Switch:   Yes

Physical Characteristics

Color:   Black
Form Factor:   Rack-mountable
Height:   1.75" (44.45 mm)
Width:   17.50" (444.50 mm)
Depth:   4.50" (114.30 mm)
Weight (Approximate):   2.09 kg

Miscellaneous

Package Contents:

• Power Strip 120V AC
• Instruction manual with warranty information

Additional Information:

• Form factors supported: Rackmount, wall-mount and undercounter installation
• Switches: Red illuminated 2 positon switch controls power to all outlets
• Locking switch cover: Transparent locking switch cover prevents accidental shutoff
• TVSS grounding: Back panel nut and bolt grounding lug

Certifications & Standards:

• UL1363
• cUL



Warranty

Limited Warranty:   Lifetime
