ASUS ROG ZENITH EXTREME ALPHA AMD Ryzen Threadripper TR4 X399 Max.128GB eATX motherboard
$838.67
Was: $1006.4
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12994
Brand:
ASUS TeK
Mfg Sku:
ROG ZENITH EXTREME ALPHA
Share to:
Specification
ASUS ROG ZENITH EXTREME ALPHA AMD Ryzen Threadripper TR4 X399 Max.128GB eATX motherboard
Detail Specifications
| CPU AMD SocketTR4 for 1st and 2nd Gen AMD RyzenTM ThreadripperTM Processors The support of these features depends on the CPU types. |
| Chipset AMD X399 |
| Memory AMD RyzenTM ThreadripperTM Processors 8 x DIMM, max. 128GB, DDR4 3600(O.C)/3466(O.C)/3400(O.C)/3200(O.C)/3000(O.C)/2933(O.C)/2800(O.C)/2666/2400/2133 MHz ECC and non-ECC, Unbuffered memory Quad Channel Memory Architecture Please refer to Memory QVL(Qualified Vendors List) for details. |
| Expansion Slots AMD RyzenTM ThreadripperTM Processors 4 x PCIe 3.0 x16 Safeslots (supports x16, x16/x16, x16/x8/x16, x16/x8/x16/x8 modes) AMD X399 chipset 1 x PCIe 3.0 x4 slot |
| Multi-GPU Supports NVIDIA 3-Way/Quad-GPU SLITM Technology Supports AMD 3-Way/Quad-GPU CrossFireXTM Technology |
| Storage AMD RyzenTM ThreadripperTM Processors 1 x DIMM.2 Module supports - 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (support PCIe 3.0 x 4 and SATA modes) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x4 mode) When the M.2 Socket 3 on board is operating in PCIe mode, PCIe 3.0 x16_4 will runs at x4 mode. Supports PCIE RAID configurations via onboard M.2 storages. AMD X399 chipset 8 x SATA 6Gb/s ports |
| LAN Aquantia AQC-107 10G LAN Intel I211-AT Gigabit LAN Anti-surge LANGuard ROG GameFirst Technology |
| Wi-Fi and Bluetooth Intel Wireless-AC 9260 2x2 MU-MIMO 802.11 a/b/g/n/ac support dual frequency band 2.4/5 GHz Up to 1.73Gbps transfer speed Supports channel bandwidth: HT20/HT40/HT80/HT160 Bluetooth v5.0 |
| Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Supports up to 32-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Impedance sense for front and rear headphone outputs - SupremeFX Shielding Technology - Supports: Jack-detection, Multi-streaming, and Front Panel Jack-retasking - ESS SABRE9018Q2C High Definition DAC Audio Features: - LED-illuminated design - Optical S/PDIF out port at back panel - Sonic Studio III + Sonic Studio Link - Sonic Radar III Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB AMD RyzenTM ThreadripperTM Processors - 8 x USB 3.1 Gen1 ports (8 ports at back panelblue) AMD X399 chipset: - 1 x USB 3.1 Gen2 Type-C front panel connector - 4 x USB 3.1 Gen1 ports (4 ports at mid-board) - 4 x USB 2.0 ports (4 ports at mid-board) ASMedia 3142 USB 3.1 controller - 2 x USB 3.1 Gen2 ports (2 x Type-A at back panel) ASMedia 3142 USB 3.1 controller - 2 x USB 3.1 Gen2 ports (1 x Type-A and 1 x Type-C at back panel) |
| ROG Exclusive Features Extreme Engine Digi+ - MicroFine Alloy Choke - PowIRstage IR3555 MOSFETs - 10K Black Metallic Capacitors Start Button Retry Button Extreme Tweaker ROG Aluminum heatsink cover LN2 Mode ProbeIT ROG Exclusive Software - Mem Tweakit - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III |
| Special Features AURA - Aura Lighting Control - Aura RGB Strip Headers - Aura Addressable Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Dual Intelligent Processors 5 - 5-way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power control, Fan Xpert 4, and Turbo app ASUS Exclusive Features - OptiMem II - Pre-mounted I/O shield - ASUS NODE: hardware control interface - AI Suite 3 - USB BIOS Flashback - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - LiveDash - Ai Charger - BUPDATER - Armoury Crate - Clear CMOS Button - Reset Button ASUS Q-Design - Q-Connector - Q-DIMM - Q-Code - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green)) |
| Back panel I/O ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x 2x2 Wi-Fi Module 1 x Aquantia AQC-107 10G LAN port 1 x Anti-surge LAN (RJ45) port 8 x USB 3.1 Gen1 ports blue 4 x USB 3.1 Gen2 ports (3 x Type-A (red) and 1 x Type-C (black)) 1 x Optical S/PDIF out 5 x LED-illuminated audio jacks |
| Internal I/O connectors 1 x USB 3.1 Gen2 Type-C front panel connector 2 x USB 3.1 Gen1 header supports additional 4 USB 3.1 Gen1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports 8 x SATA 6Gb/s connectors 1 x DIMM.2 slot 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 storage devices support (Supports PCIE 3.0 x4 mode) 1 x 4-Pin CPU fan connector 1 x 4-Pin CPU_OPT fan connector 1 x 4-Pin H_AMP Fan connector 1 x 4-Pin W_PUMP+ connector 2 x 4-Pin Chassis fan connectors 1 x 4-Pin HS fan connector 2 x Thermal sensor connectors 1 x 24-Pin EATX power connector 2 x 8-Pin EATX 12V power connectors 1 x EZ Plug connector (4-pin Molex power connector) 1 x W_PUMP+ 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x WB_SENSOR header 2 x Aura RGB headers 2 x Aura Addressable headers 1 x Front panel audio connector (AAFP) 1 x Start button 1 x Reset button 1 x Safe Boot button 1 x ReTry button 1 x Slow mode Switch 1 x RSVD switch 1 x NODE connector 1 x LN2 mode jumper 1 x BIOS Switch button 7 x ProbeIt Measurement Points 1 x TPM connector 1 x Speaker header 1 x System panel connector |

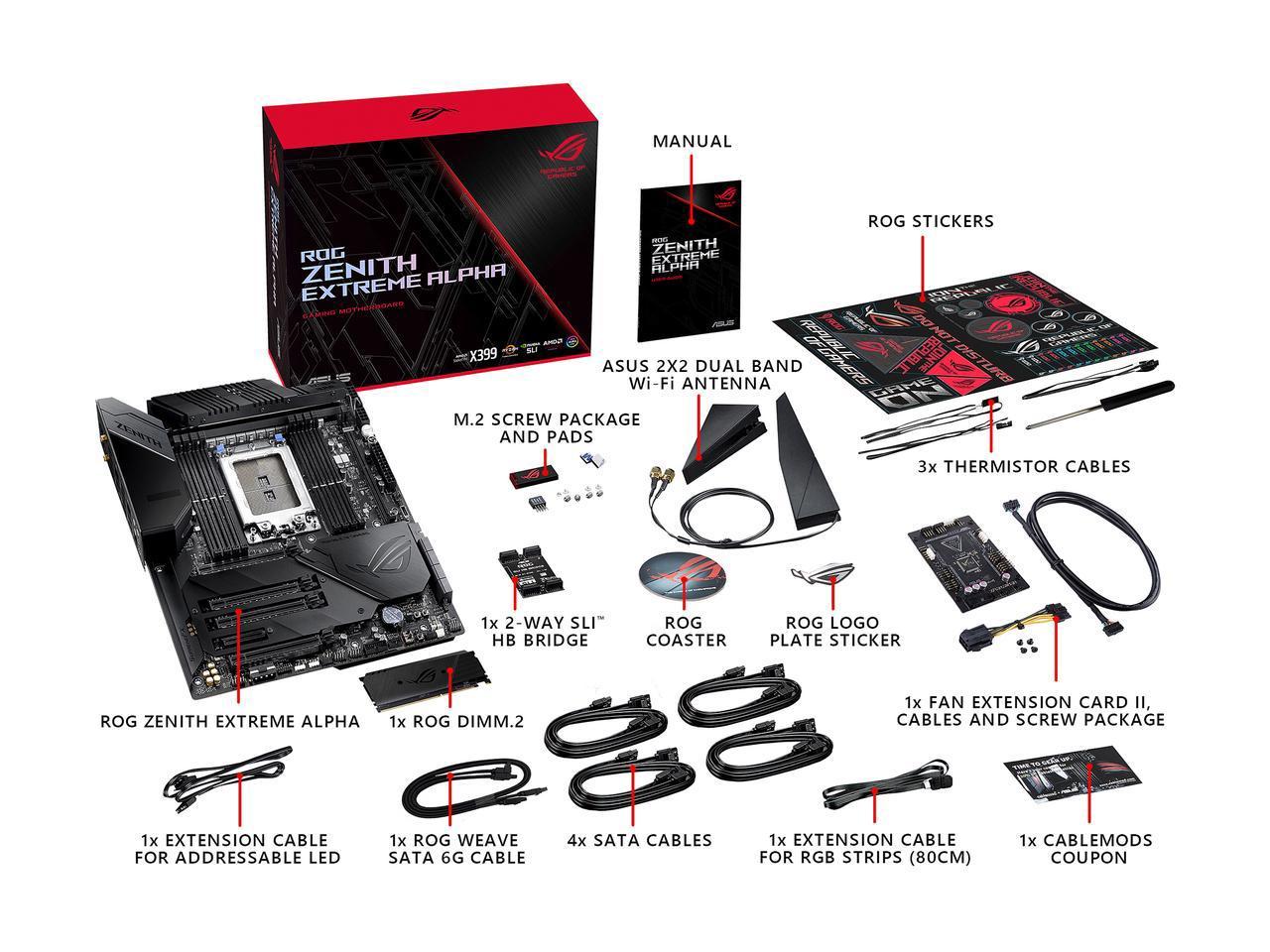

| Accessory ROG ZENITH EXTREME ALPHA 1 x Users manual 1 x USB drive with utilities and drivers 1 x ROG DIMM.2 with heatsink 1 x SLI HB Bridge(2-way-M) 3 x 2-in-1 SATA 6Gb/s cables 1 x 2-in-1 ROG weave SATA 6G cable 3 x M.2 Screw Package 1 x 3-in-1 thermistor cable 1 x Q-Connector 1 x ROG Coaster 1 x ROG big sticker 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ASUS 2x2 dual band Wi-Fi antennas 1 x Dual function screwdriver 1 x ROG logo plate sticker 1 x ROG Thank you Card 1 x 2-in-1 Rubber pad Fan Extension Card II: 1 x Fan Extension Card II 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x Fan Extension Card II user manual |
| BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1 |
| Manageability WOL , PXE |
| Support USB contents Overwolf Anti-Virus software (1-year full subscription) Daemon Tools Software WinRAR |
| Operating System Support Windows 10 64-bit |
| Form Factor Extended ATX Form Factor 12 inch x 10.9 inch (30.5cm x 27.7cm) |
| Item Dimension (L"xW"xH") 15 x 13 x 5 Weight 8.80 LB Warranty Information 3 Year Warranty (Manufacture) |
