General Information

Manufacturer:   Corsair
Manufacturer Part Number:   CC-9011105-WW
Manufacturer Website Address:   www.corsair.com
Brand Name:   Corsair
Product Line:   Carbide
Product Model:   270R

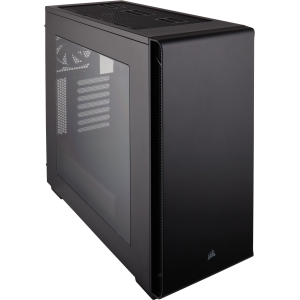

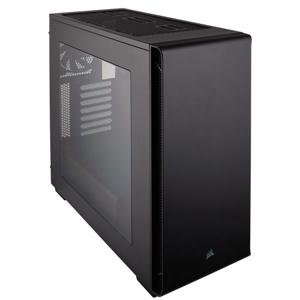

Product Name:   Carbide Series 270R Windowed ATX Mid-Tower Case
Marketing Information:

Rugged, Sleek and Simple

Carbide Series 270R is compact and engineered for building high-performance yet minimalist systems.

Builder-friendly internal layout

Simple and intuitive internal layout enables easy and quick building

Versatile cooling options

Room for up to a 360mm radiator in front, 240mm radiator at top, and 120mm radiator in the rear

Expansive storage space

Rugged construction steel drive trays provide ample of room for additional drives

Clean and minimalist exterior design

Unobstructive panels deliver an understated look

Built-in cable routing

Cable routing compartment enables effortlessly clean builds

Direct Airflow Path

Provides airflow to the hottest components without any interference from drive cages

Look Hot. Run Cold.

Take advantage of Direct Airflow Cooling as well as ample room for radiators in the front, top and rear. Keep your rig running cool and quiet with 270R's enormous cooling potential.

Keep it Clean

Unobstructive exterior panels provide an understated look for an overall clean and minimalist design. The subtle cable routing compartment makes it even easier to achieve an effortlessly clean build.

Product Type:   Computer Case



Technical Information

Motherboard Supported:   ATX
Motherboard Supported:   Mini ITX
Motherboard Supported:   Micro ATX
Number of Fans Supported:   6
Number of Fans Installed:   2
Installed Fan Size:   4.72" (120 mm)

Bays

Number of External 5.25" Bays:   0
Number of Internal 5.25" Bays:   0
Number of Internal 3.5" Bays:   2
Number of Internal 2.5" Bays:   2
Number of Total Expansion Bays:   4

I/O Expansions

Number of Total Expansion Slots:   7

Interfaces/Ports

Total Number of USB Ports:   2
Total Number of Audio In Ports:   1
Total Number of Audio Out Ports:   1

Power Description

Power Supply Installed:   No
Number of Power Supplies Supported:   1

Physical Characteristics

Color:   Black
Material:   Steel
Form Factor:   Mid-tower
Height:   18.11" (460 mm)
Width:   8.27" (210 mm)
Depth:   20.04" (509 mm)
Weight (Approximate):   7.28 kg

Miscellaneous

Package Contents:

• Carbide Series 270R Windowed ATX Mid-Tower Case
• Accessory Kit
• Warranty and Support Information



Warranty

Limited Warranty:   2 Years Manufacture
