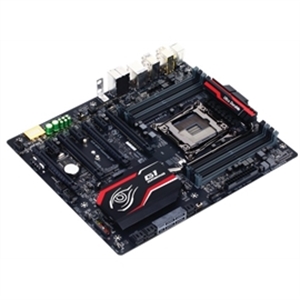

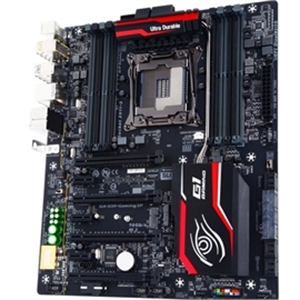

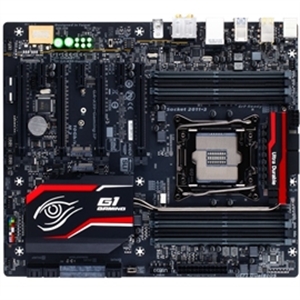

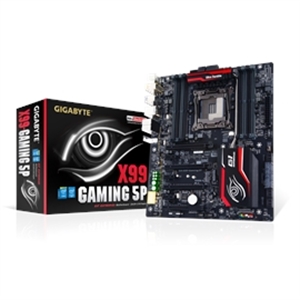

Gigabyte GA-X99-GAMING 5P Core i7 LGA2011-3 X99 DDR4 SATA PCIE EATX Gaming Motherboard
$434.70
Was: $521.64
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
9696
Brand:
Gigabyte
Mfg Sku:
GA-X99-GAMING 5P
Share to:
Specification
Gigabyte MB GA-X99-GAMING 5P Ci7 S2011-3 X99 DDR4 SATA PCIE EATX Retail
Detail Specifications
| CPU 1.Support for Intel Core i7 processors in the LGA2011-3 package 2.L3 cache varies with CPU Chipset 1.Intel X99 Express Chipset |
| Memory 1.8 x DDR4 DIMM sockets supporting up to 128 GB of system memory (Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.) 2.4 channel memory architecture |
| 3.Support for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules 4.Support for non-ECC memory modules 5.Support for Extreme Memory Profile (XMP) memory modules 6.Support for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operates in non-ECC mode) |
| Audio 1.Creative Sound Core 3D chip 2.Support for Sound Blaster Recon3Di 3.TI Burr Brown OPA2134 operational amplifier 4.High Definition Audio 5.2/5.1-channel 6.Support for S/PDIF Out LAN 1.Qualcomm Atheros Killer E2201 LAN chip (10/100/1000 Mbit) |
| Expansion Slots 1.2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2) ( For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.) |
| 2.2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4) (The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.) (When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.) (All PCI Express x16 slots conform to PCI Express 3.0 standard.) |
| 3.3 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) 4.1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) |
| Multi-Graphics Technology 1.Support for 4-Way/3-Way/2-Way AMD CrossFire/NVIDIA SLI technology (The 4-Way NVIDIA SLI configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire/NVIDIA SLI Configuration.") |
| Storage Interface Chipset: 1.1 x M.2 PCIe connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2/x1 SSD support) 2.1 x SATA Express connector 3.6 x SATA 6Gb/s connectors (SATA3 0-5) 4.Support for RAID 0, RAID 1, RAID 5, and RAID 10 (Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.) (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.) |
| Chipset: 1.4 x SATA 6Gb/s connectors (sSATA3 0-3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0-5 connectors cannot be used on the sSATA3 0-3 connectors.) |
| USB Chipset: 1.4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2.8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset + Renesas uPD720210 USB 3.0 Hub: 1.4 x USB 3.0/2.0 ports on the back panel |
| Internal I/O Connectors 1.1 x 24-pin ATX main power connector 2.1 x 8-pin ATX 12V power connector 3.1 x PCIe power connector 4.1 x I/O shield audio LED power connector 5.1 x heatsink LED power connector 6.1 x M.2 Socket 3 connector 7.1 x SATA Express connector 8.10 x SATA 6Gb/s connectors 9.1 x CPU fan header 10.1 x water cooling fan header (CPU_OPT) |
| 11.3 x system fan headers 12.1 x front panel header 13.1 x front panel audio header 14.1 x USB 3.0/2.0 header 15.2 x USB 2.0/1.1 headers 16.1 x Thunderbolt add-in card connector 17.1 x Clear CMOS jumper 18.1 x CPU mode switch 19.1 x audio gain control switch |

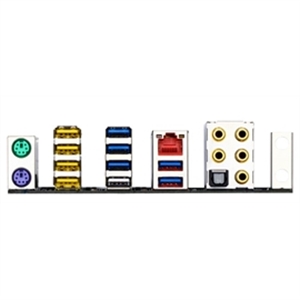

| Back Panel Connectors 1.1 x PS/2 keyboard port 2.1 x PS/2 mouse port 3.6 x USB 3.0/2.0 ports 4.4 x USB 2.0/1.1 ports 5.1 x optical S/PDIF Out connector 6.1 x RJ-45 port 7.5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone) 8.2 x Wi-Fi antenna connector holes |
| I/O Controller 1.iTE I/O Controller Chip H/W Monitoring 1.System voltage detection 2.CPU/System/Chipset temperature detection 3.CPU/CPU OPT/System fan speed detection 4.CPU/System/Chipset overheating warning 5.CPU/CPU OPT/System fan fail warning 6.CPU/CPU OPT/System fan speed control Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS 1.2 x 128 Mbit flash 2.Use of licensed AMI UEFI BIOS 3.Support for DualBIOS 4.Support for Q-Flash Plus 5.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Operating System 1.Support for Windows 8.1/8/7 Form Factor 1.E-ATX Form Factor 30.5cm x 26.4cm |
| Item Dimension (L"xW"xH"): 14 x 12 x 4 Weight: 5.56 lb Warranty Information: 3 years Manufacture Warranty |
