Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces



UPC Code: 195553936682





General Information

Manufacturer:   ASUS Computer
Manufacturer Part Number:   PRIMEZ790M-PLUSD4
Manufacturer Website Address:   www.asus.com
Brand Name:   Asus
Product Line:   Prime
Product Model:   Z790M-PLUSD4

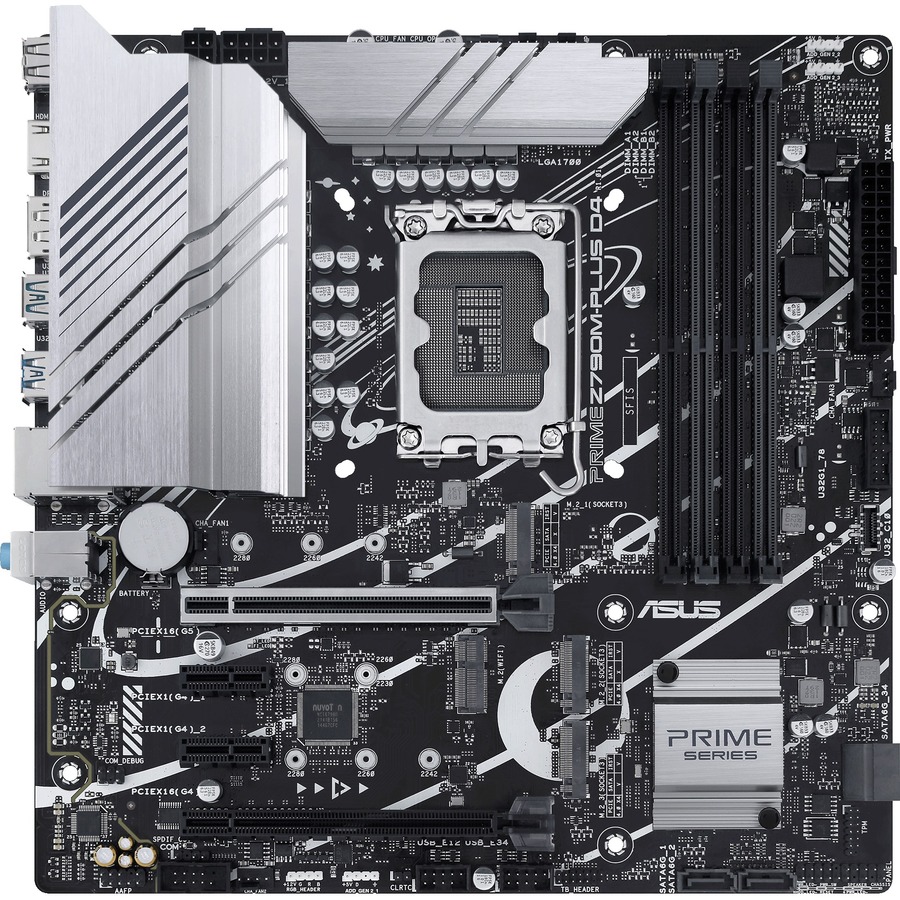

Product Name:   PRIME Z790M-PLUSD4 Gaming Desktop Motherboard
Marketing Information:

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13^th Gen Intel^® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790M-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790M-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

COOLING
PRIME Z790M-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsinks and Thermal Pads

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header

A dedicated PWM/DC header for self-contained water-cooling setups.

Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   Z790
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   12th Gen
Processor Generation Supported:   13th Gen
Processor Supported:   Celeron
Processor Supported:   Core
Processor Supported:   Pentium Gold

Memory

Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   3733 MHz
Memory Speed Supported:   3866 MHz
Memory Speed Supported:   4133 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4500 MHz
Memory Speed Supported:   4600 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5133 MHz
Memory Speed Supported:   2800 MHz
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3000 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3333 MHz
Memory Speed Supported:   3400 MHz
Memory Speed Supported:   3466 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4266 MHz
Memory Speed Supported:   4700 MHz
Memory Speed Supported:   5066 MHz
Memory Speed Supported:   5333 MHz

I/O Controller

Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   0
RAID Levels:   1
RAID Levels:   10
RAID Levels:   5

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Gigabit Ethernet:   Yes

I/O Expansions

Number of Total Expansion Slots:   4
PCI Express Standard:   PCI Express 5.0
PCI Express Standard:   PCI Express 4.0
Total Number of PCI Express Slots:   4
Number of PCI Express x1 Slots:   2
Number of PCI Express x16 Slots:   2

Interfaces/Ports

Total Number of USB Ports:   8
Number of USB 3.2 Gen 1 Type-A Ports:   4
Number of USB 3.2 Gen 2 Type-A Ports:   1
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1
Thunderbolt:   Yes

Onboard Interfaces

Number of SATA Interfaces:   4
Number of M.2 Interfaces:   3
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4

Physical Characteristics

Form Factor:   Micro ATX
Width:   9.60" (243.84 mm)
Depth:   9.60" (243.84 mm)

Miscellaneous

Package Contents:

• PRIME Z790M-PLUSD4 Gaming Desktop Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x I/O Shield
• 2 x Screw packages for M.2 SSD
• 1 x User Guide

Brand Compatibility:   Intel
