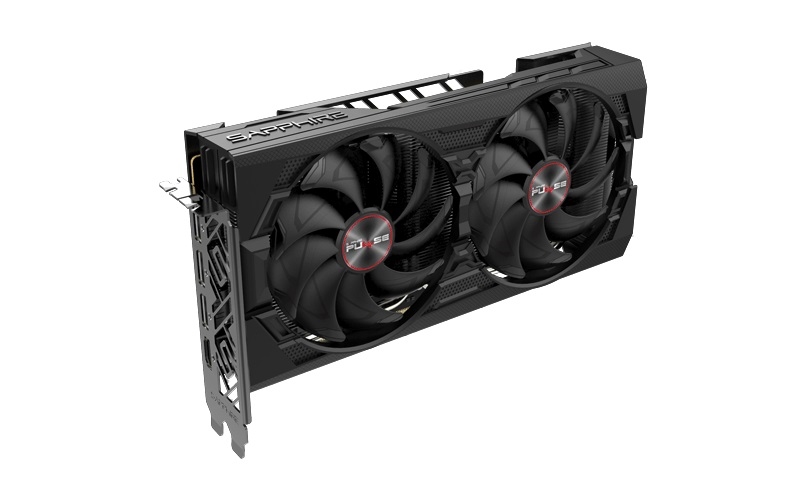

Sapphire Pulse RX 5500 XT 8GB GDDR6 PCIe HDMI / Triple Displayport OC 11295-01-20G Gaming Video Card
$289.95
Was: $347.94
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
13682
Brand:
Sapphire
Mfg Sku:
11295-01-20G
Share to:
Specification
Sapphire Pulse RX 5500 XT 8GB GDDR6 PCIe HDMI / Triple Displayport OC 11295-01-20G Gaming Video Card
Detail Specifications
| GPU Radeon RX 5500 Graphics 2nd Gen 7nm GPU RDNA Architecture |
| Engine Clock Boost Clock: Up to 1845 MHz Game Clock: Up to 1737 MHz Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors 1408 |
| Memory Size/Bus 8GB/128 bit GDDR6 |
| Memory Clock 14 Gbps Effective |
| Displays Maximum 4 Displays |
| Resolution HDMI: 4096x2160 at 60Hz DisplayPort1.4: 5120x2880 at 60Hz |
| Interface PCI-Express 4.0 |
| Output 1x HDMI 3x DisplayPort |
| BIOS Support Dual UEFI |
| API Vulkan OpenGL 4.6 OpenCL 2.0 DirectX 12 Shader Model 6.4 |
| Game Index Extreme 1080P |
| Sapphire Features Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS |
| AMD Features RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Radeon Image Sharpening Radeon Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR |
| Cooling Dual-X Cooling Dual Fan Two-Ball Bearing |
| Form Factor 2 slot, ATX Dimension: 233 x 121.8 x 39.6(mm) |
| Power Consumption 135W |
| OS Linux, Windows 10, Windows 7 64bit operating system required |
| System Requirement Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply). 1 x 8-pin Power Connector. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 4GB of system memory. 8GB recommended. |
| Item Dimension (L"xW"xH") 13 x 9 x 3 Weight 3 lbs Warranty Information 1 year Manufacture Warranty |
