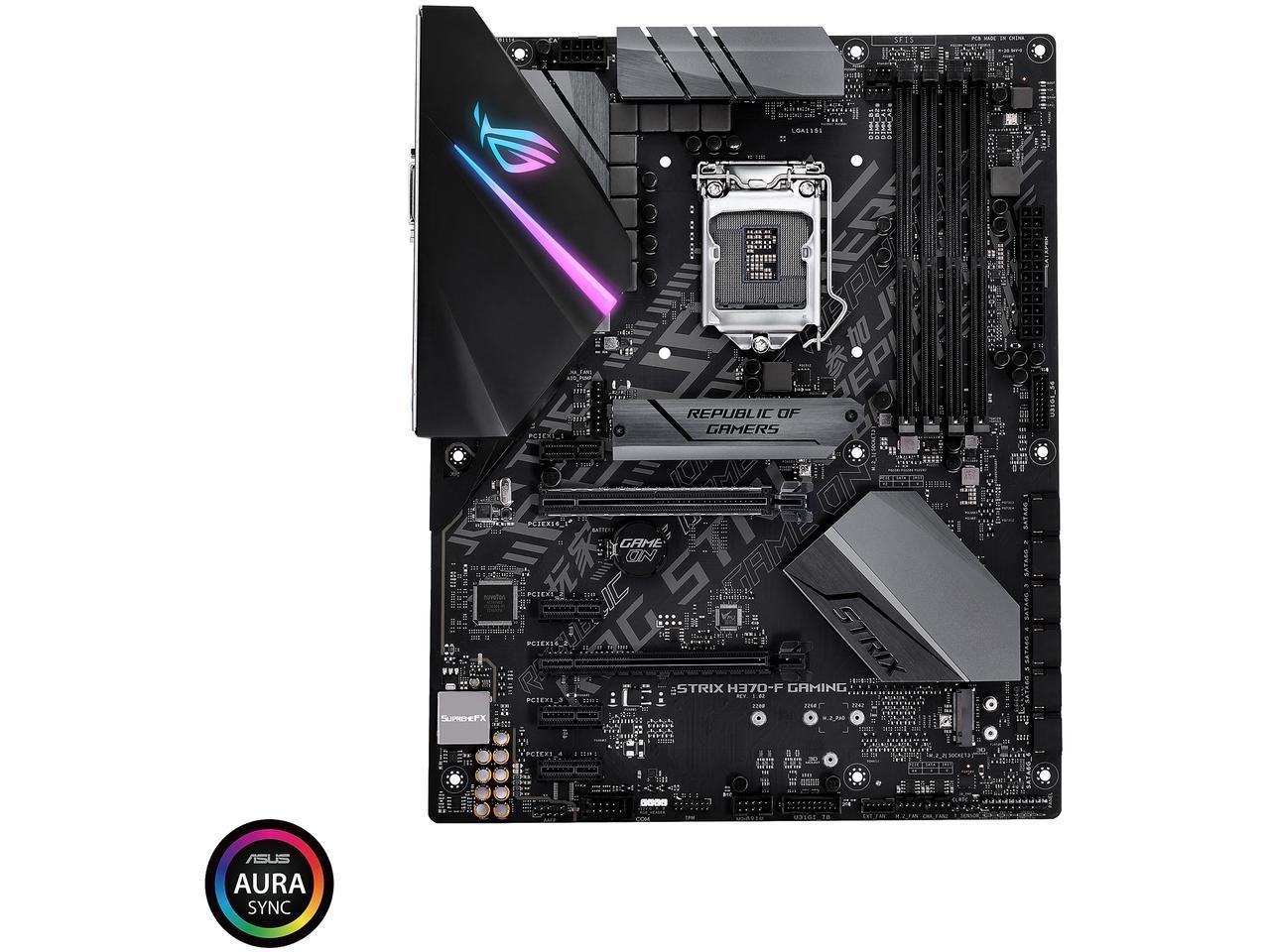

ASUS ROG STRIX H370-F GAMING ROG Strix H370-F Dual M.2 USB 3.1 Gen2 Coffee Lake Motherboard
$183.83
Was: $220.6
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12414
Brand:
ASUS TeK
Mfg Sku:
ROG STRIX H370-F GAMING
Share to:
Specification
ASUS ROG STRIX H370-F GAMING ROG Strix H370-F Dual M.2 USB 3.1 Gen2 Coffee Lake Motherboard
Detail Specifications
| CPU Intel Socket 1151 for 8th Generation Core Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset Intel H370 |
| Memory 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Graphic Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 at 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 at 60 Hz |
| Multi-GPU Support Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots 8th Generation Intel Core Processor 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel H370 Chipset 1 x PCIe 3.0/2.0 x16 (x4 mode) 4 x PCIe 3.0/2.0 x1 |
| Storage Intel H370 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 2 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| LAN Intel I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology |
| Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| USB Ports Intel H370 Chipset : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-CTM, Support 3A power output) Intel H370 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A, Support 3A power output) Intel H370 Chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel H370 Chipset : 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board) |
| ROG Exclusive Features ROG RAMCache II ROG CPU-Z ROG CloneDrive Overwolf GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers |

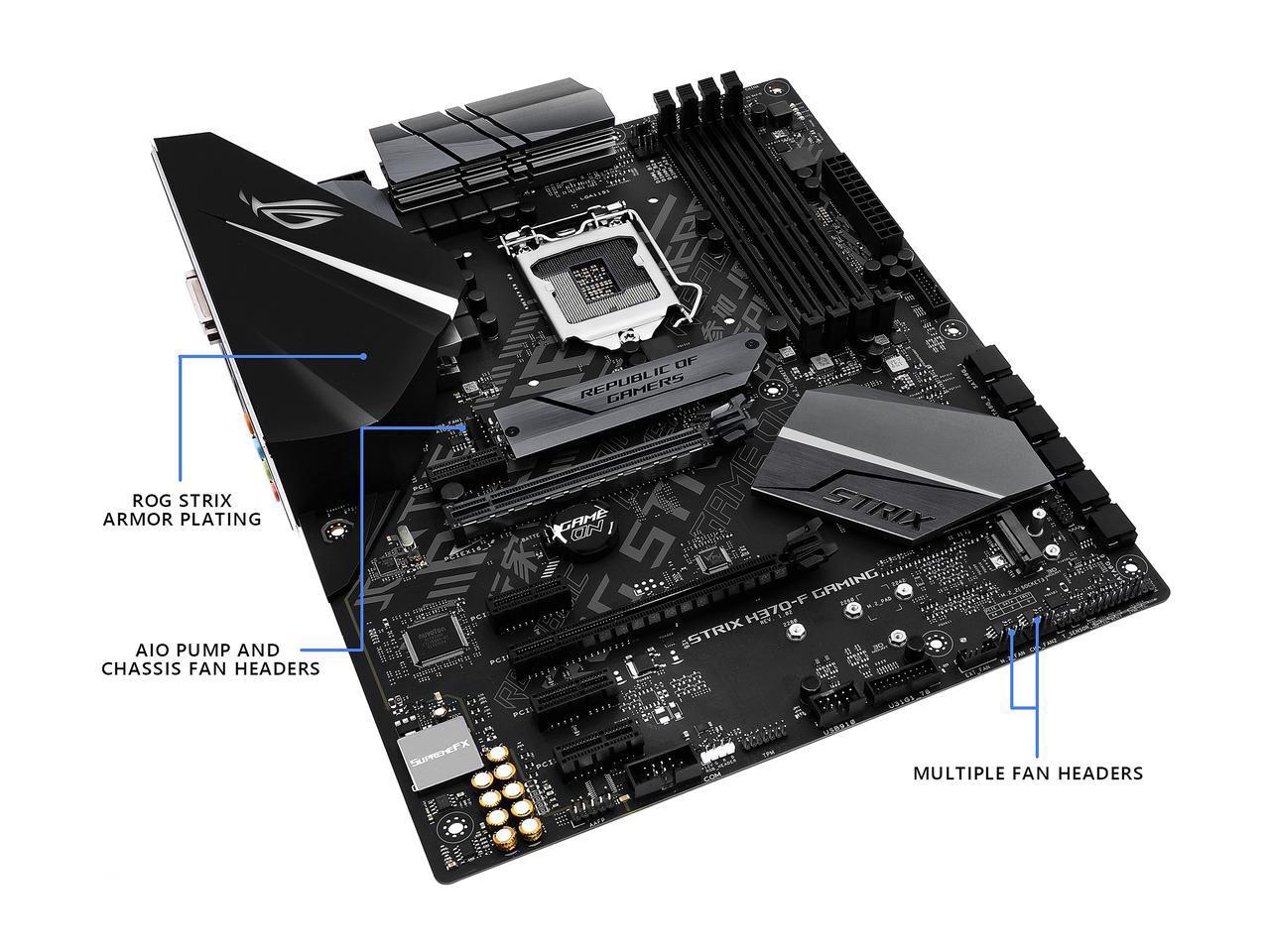

| Special Features Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamers Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Digi+VRM |
| Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)USB Type-CTM, 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports 1 x AAFP connector 1 x RGB Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 2 x 3D Mount screw port(s) |
| Accessories Users manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80 cm) 1 x 3D printing mount package |
| BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search |
| Manageability WOL, WOR, PXE |
| Operating System Windows 10 64-bit |
| Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Item Dimension (L"xW"xH") 11 x 13 x 3 Weight 3.46 lbs Warranty Information 3 Years Manufacture |
