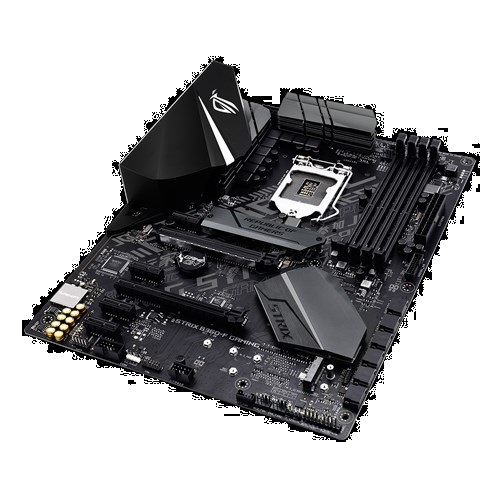

ASUS ROG STRIX B360-F GAMING LGA 1151 B360 DDR4 2666 / DisplayPort / HDMI / DVI M.2 ATX Coffee Lake Motherboard

$169.41
Was: $203.29
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12322
Brand:
ASUS
Mfg Sku:
ROG STRIX B360-F GAMING


Share to:

Specification

ASUS ROG STRIX B360-F GAMING LGA 1151 B360 DDR4 2666 / DisplayPort / HDMI / DVI M.2 ATX Coffee Lake Motherboard



  • CPU
    Intel® Socket 1151 for 8th Generation Core Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® B360
  • Memory
    4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    8th Generation Intel® Core™ Processor
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    Intel® B360 Chipset
    1 x PCIe 3.0/2.0 x16 (x4 mode) *2
    4 x PCIe 3.0/2.0 x1 *3
  • Storage
    Intel® B360 Chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*4
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready *5
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
    - Dual Headphone Amplifiers
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - Supports up to 32-Bit/192kHz playback *6
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III + Sonic Studio Link
  • USB Ports
    Intel® B360 Chipset :
    1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-CTM, Support 3A power output)
    Intel® B360 Chipset :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A, Support 3A power output)
    Intel® B360 Chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    Intel® B360 Chipset :
    6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
  • ROG Exclusive Features
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Pre-mounted I/O Shield
    Overwolf
    GameFirst IV
    ROG Aura
    - Aura Lighting Control
    - Aura RGB Strip Headers
  • Special Features
    Fan Xpert4
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    Gamer's Guardian:
    - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
    - DRAM Overcurrent Protection
    - Stainless Steel Back I/O
    - Highly Durable Components
    - SafeSlot
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Gaming Aesthetics :
    - 3D printing friendly
    - AURA-RGB Lighting
    Digi+VRM
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 Gen 2 (black)USB Type-CTM,
    2 x USB 3.1 Gen 2 (red)Type-A
    4 x USB 2.0
    1 x Optical S/PDIF out
    5 x Audio jack(s)
  • Internal I/O Ports
    1 x AAFP connector
    1 x RGB Header(s)
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x M.2_FAN connector
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x System panel(s)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    1 x COM port header
    2 x 3D Mount screw port(s)
  • Accessories
    User's manual
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x CABLE TIE BLACK
    1 x ROG Strix stickers
    1 x ROG Door Hanger(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x 3D printing mount package
  • BIOS
    1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search
  • Manageability
    WOL, WOR, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
