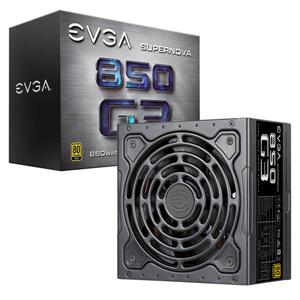

EVGA 850W 220-G3-0850-X1 SuperNOVA G3 80+ Gold 850 W Modular Mining Power Supply

$139.95
Was: $167.94
Availability:
In Stock
Richmond BC Warehouse:
2
Toronto ON Warehouse:
0
Product Code:
12288
Brand:
eVGA
Mfg Sku:
220-G3-0850-X1


Share to:

Specification

EVGA 850W 220-G3-0850-X1 SuperNOVA G3 80+ Gold 850 W Modular Mining Power Supply

Detail Specifications

  CABLE LENGTH
ATX CABLE : 1x 600mm (m)
EPS CABLE : 2x 700mm (m)
PCIE CABLE : 2x 700mm, 2x 700mm, 850mm (m)
SATA CABLE : 3x 550mm, 650mm, 750mm (m)
FOUR-PIN PERIPHERAL CABLE : 1x 550mm, 650mm, 750mm, 850mm (m)
FLOPPY ADAPTER : 1x 100mm
AC POWER : 1x 1500mm (m)
MODULAR CABLE TYPE : Full
  CONNECTOR QUANTITY
24 PIN ATX : 1x
EPS (CPU) : 2x 8pin (4+4)
PCIE : 6x 8pin (6+2)
SATA : 9x
FOUR-PIN PERIPHERAL : 4x
FLOPPY : 1x
  POWER SPECS
AC Input : 100 - 240 VAC, 10A, 50 - 60 Hz
Rail : +3.3V / +5V / +12V / +5Vsb / -12V
Max Output : 24A, 120W / 24A, 120W / 70.8A, 849.6W, 849.6W / 3.0A, 15W / 0.5A, 6W
Total : 850W at +50C
  ADDITIONAL DETAILS
OPERATING TEMPERATURE : 0oC to 50oC
JAPANESE CAPACITORS : 100%
ECO MODE : Yes
MTBF : 100,000 Hours
NET WEIGHT : 8 lbs
APPROVALS : TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING : 130mm Hydraulic Dynamic Bearing
  Item Dimension (L inchxW inchxH inch)
12 x 9 x 5

Weight
8.00 lb

Warranty Information
1 Year Manufacture
