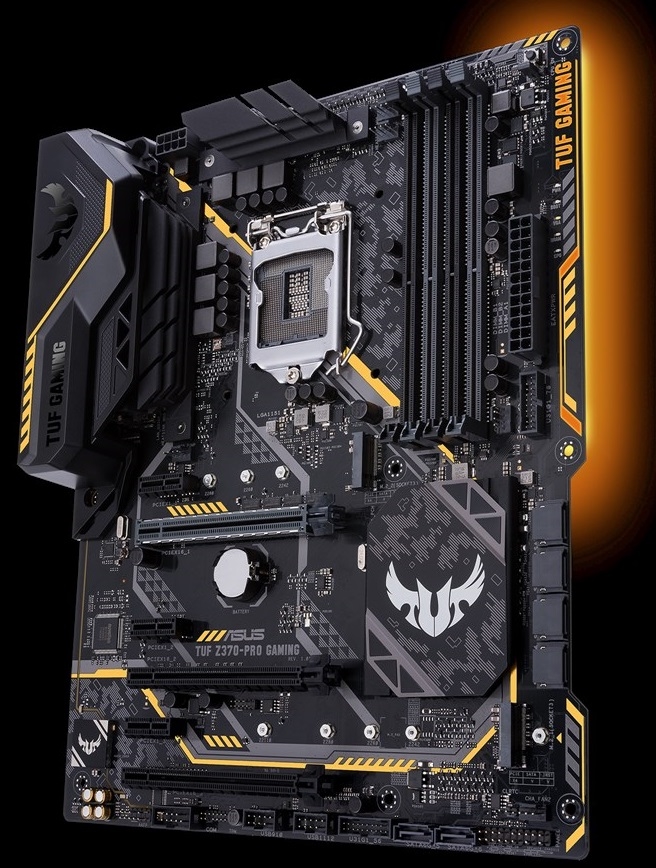

ASUS TUF Z370 Pro Gaming LGA 1151 DDR4 HDMI DVI M.2 Z370 ATX Coffee Lake Gaming Motherboard
$198.44
Was: $238.13
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12194
Brand:
ASUS
Mfg Sku:
TUF Z370 PRO GAMING
Share to:
Specification
ASUS TUF Z370 Pro Gaming LGA 1151 DDR4 HDMI DVI M.2 Z370 ATX Coffee Lake Gaming Motherboard
Detail Specifications
| CPU Intel Socket 1151 for 8th Generation Core Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset Intel Z370 |
| Memory 4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)) |
| Graphic Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz Maximum shared memory of 1024 MB Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Multi-GPU Support Supports NVIDIA 2-Way SLI Technology Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4, x8+x4+x4/x0) 1 x PCIe 3.0/2.0 x16 (max at x2 mode) 3 x PCIe 3.0/2.0 x1 |
| Storage Intel Z370 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
| LAN Intel I219V, 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility TUF LANGuard |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports ASMedia USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A) Intel Z370 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board) Intel Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| Special Features Performance and Power Saving Utility: Autoing Tuning with OC Tuner ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI + VRM: 4+2+1 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger File Transfer - Cloud GO - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |
| Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x MemOK button(s) 1 x CPU OV 1 x Clear CMOS jumper(s) |
| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x TUF Certification card(s) |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) |
| Operating System Windows 10 64-bit |
| Form Factor ATX Form Factor |
| Item Dimension (L inchxW inchxH inch) 11 x 13 x 3 |
| Weight 3.00 lb |
| Warranty Information 5 Years Manufacture |
