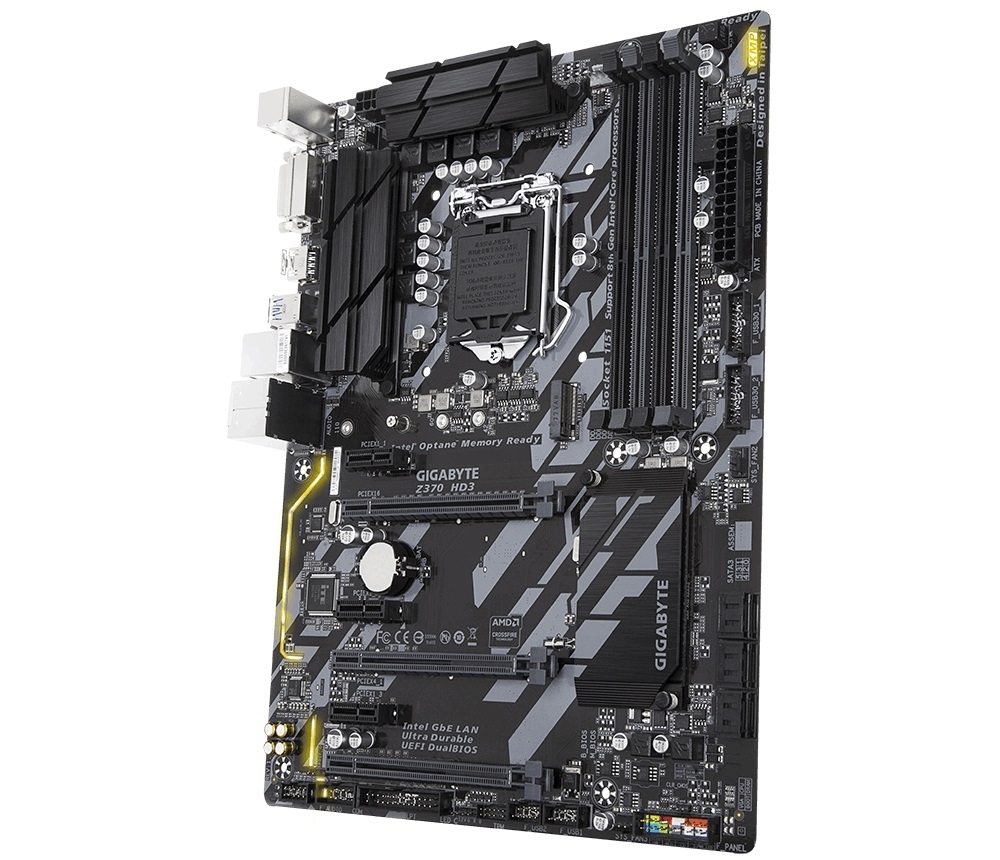

Gigabyte Z370 HD3 Intel Z370 Ultra Durable CrossFire support, SATA PCI Express, HDMI/DVI-D ATX Coffee Lake Motherboard
$166.06
Was: $199.27
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12057
Brand:
Gigabyte
Mfg Sku:
Z370 HD3
Share to:
Specification
Gigabyte Z370 HD3 Intel Z370 Ultra Durable motherboard with CrossFire support, SATA PCI Express, HDMI/DVI-D ATX Coffee Lake Motherboard
Detail Specifications
| CPU Support for 8th Generation Intel CoreTM i7 processors/Intel CoreTM i5 processors/Intel CoreTM i3 processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset Intel Z370 Express Chipset |
| Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz -The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz -Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB |
| Audio Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Intel GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) -For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) 3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Storage InterfaceChipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 -Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel OptaneTM Memory Ready |
| Multi-Graphics Technology Support for AMD Quad-GPU CrossFireTM and 2-Way AMD CrossFireTM technologies |
| USB Chipset: 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper |
| Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| I/O Controller iTE I/O Controller Chip |
| H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control -Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOSTM PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features Support for APP Center -Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD at BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
| Bundle Software Norton Internet Security (OEM version) cFosSpeed |
| Operating System Support for Windows 10 64-bit |
| Form Factor ATX Form Factor, 30.5cm x 22.5cm |
| Item Dimension (L inchxW inchxH inch) 13 x 11 x 3 Weight 3.00 lb Warranty Information 3 Years Manufacture |
