Gigabyte GA-H110-D3A LGA 1151 H110 DDR4 2133 SATA 6Gb/s ATX USB 3.0 VGA m.2 Mining Rig Ready SkyLake Motherboard
$199.88
Was: $239.86
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
11930
Brand:
Gigabyte
Mfg Sku:
GA-H110-D3A
Share to:
Specification
Gigabyte GA-H110-D3A LGA 1151 H110 DDR4 2133 SATA 6Gb/s ATX USB 3.0 VGA m.2 SkyLake Motherboard
Detail Specifications
| CPU 1.Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package 2.L3 cache varies with CPU |
| Chipset 1.Intel H110 Express Chipset |
| Memory 1.2 x DDR4 DIMM sockets supporting up to 32 GB of system memory 2.Dual channel memory architecture 3.Support for DDR4 2133 MHz memory modules 4.Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5.Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules 6.Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics Integrated Graphics Processor - Intel HD Graphics support: 1.1 x D-Sub port, supporting a maximum resolution of 1920x120060 Hz Maximum shared memory of 1 GB |
| Audio 1.Realtek ALC887 codec 2.High Definition Audio 3.2/4/5.1/7.1-channel 4.Support for S/PDIF Out |
| LAN 1.Realtek GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots 1.1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 2.5 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Storage Interface Chipset: 1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support) 2.4 x SATA 6Gb/s connectors |
| USB Chipset: 1.4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors 1.1 x 24-pin ATX main power connector 2.1 x 8-pin ATX 12V power connector 3.2 x PCIe power connectors 4.1 x CPU fan header 5.3 x system fan headers 6.4 x SATA 6Gb/s connectors 7.1 x M.2 Socket 3 connector 8.1 x front panel header 9.1 x front panel audio header 10.1 x S/PDIF Out header 11.1 x USB 3.1 Gen 1 header 12.2 x USB 2.0/1.1 headers 13.1 x Trusted Platform Module (TPM) header 14.1 x Clear CMOS jumper |

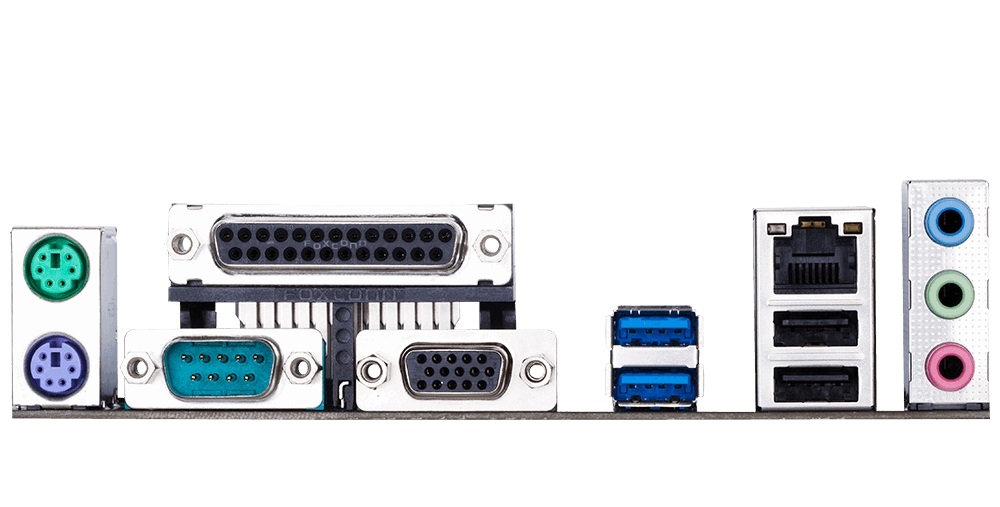

| Back Panel Connectors 1.1 x PS/2 mouse port 2.1 x PS/2 Keyboard port 3.1 x parallel port 4.1 x serial port 5.1 x D-Sub port 6.2 x USB 3.1 Gen 1 ports 7.2 x USB 2.0/1.1 ports 8.1 x RJ-45 port 9.3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller 1.iTE I/O Controller Chip |
| H/W Monitoring 1.Voltage detection 2.Temperature detection 3.Fan speed detection 4.Overheating warning 5.Fan fail warning 6.Fan speed control |
| BIOS 1.2 x 64 Mbit flash 2.Use of licensed AMI UEFI BIOS 3.Support for DualBIOS 4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features 1.Support for APP Center 3D OSD BIOS Ambient LED AutoGreen Cloud Station EasyTune Fast Boot ON/OFF Charge Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker 2.Support for Q-Flash 3.Support for Xpress Install |
| Bundle Software 1.Norton Internet Security (OEM version) 2.cFosSpeed |
| Operating System 1.Windows 10 64-bit (for 7th Generation Intel Processors) 2.Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors) |
| Form Factor 1.ATX Form Factor 30.5cm x 19.0cm |
| Item Dimension (L inchxW inchxH inch) 13 x 11 x 3 Weight 3.00 lb Warranty Information 3 Years Manufacture |
