General Information

Manufacturer:   StarTech.com
Manufacturer Part Number:   110VDSLEXT
Manufacturer Website Address:   www.startech.com
Brand Name:   StarTech.com

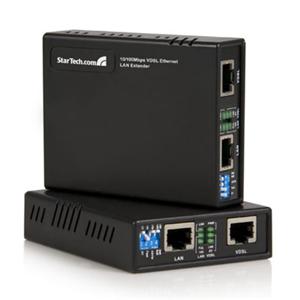

Product Name:   VDSL Ethernet Extender Kit
Marketing Information:

The 110VDSLEXT VDSL Ethernet extender kit lets you span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity, allowing you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL (VDSL2) kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included.

A perfect solution for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless may be impossible. The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type:   Network Repeater

Interfaces/Ports

Total Number of Network Ports:   2
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   2

Network & Communication

Ethernet Technology:   Fast Ethernet
Network Technology:   10/100Base-TX

Power Description

Input Voltage:   12 V DC

Physical Characteristics

Height:   0.9" (22.1 mm)
Width:   2.8" (71.9 mm)
Depth:   3.7" (95 mm)
Weight (Approximate):   90.2 g

Miscellaneous

Package Contents:

• VDSL Ethernet Extender Kit
• 2 x Power Adapter

Additional Information:

• Simple Plug and play installation
• Selectable CPE and CO mode via DIP switch
• Light in weight and a very compact design
• Supports both symmetric and asymmetric transmission
• Provides high speed Ethernet over telephone line for optimal performance of existing infrastructure
• Allows network connectivity in buildings made of stone/concrete where new ethernet cabling or wireless are impossible

Green Compliant:   Yes
Green Compliance Certificate/Authority:   RoHS

Warranty

Limited Warranty:   2 Years Manufacture Warranty
