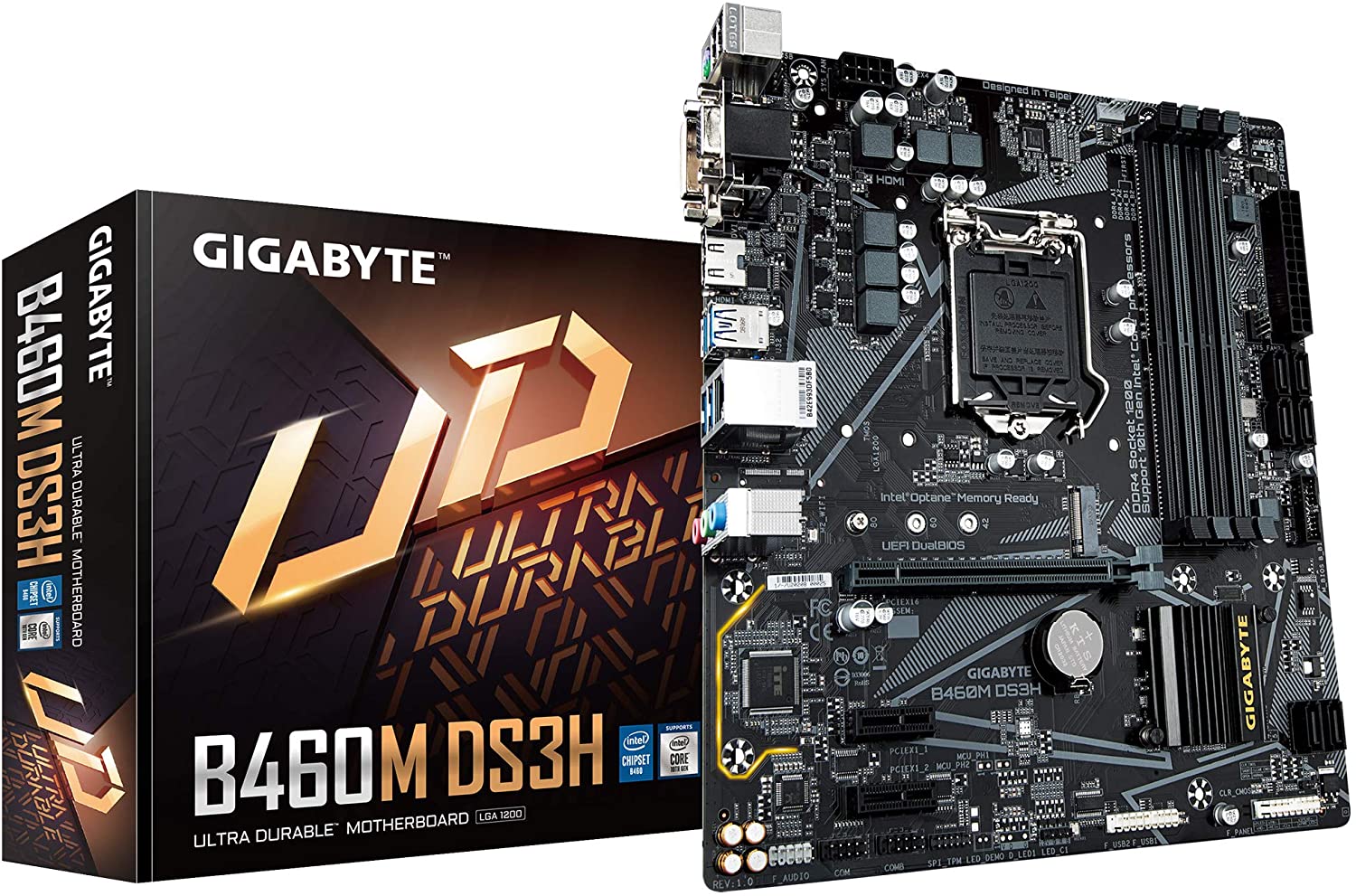

Gigabyte B460M DS3H Intel LGA 1200 Core i9 i7 i5 i3 B460 DDR4 128GB / HDMI / DVI-D / D-Sub mATX motherboard
$112.14
Was: $134.57
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
14169
Brand:
Gigabyte
Mfg Sku:
B460M DS3H
Share to:
Specification
Gigabyte B460M DS3H Intel LGA 1200 Core i9 i7 i5 i3 B460 DDR4 128GB / HDMI / DVI-D / D-Sub mATX motherboard
Detail Specifications
| CPU Support for 10th Generation Intel CoreTM i9 processors/Intel CoreTM i7 processors/Intel CoreTM i5 processors/Intel CoreTM i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package L3 cache varies with CPU |
| Chipset Intel B460 Express Chipset |
| Memory Intel CoreTM i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz Intel CoreTM i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200 at 60 Hz - The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz - Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512 MB |
| Audio Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel - To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software. |
| LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.) Supports up to ASPM L1.2 power management protocols. |
| Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 - Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel OptaneTM Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols. |
| USB Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x serial port headers 1 x Clear CMOS jumper |
| Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller iTE I/O Controller Chip |
| H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control -Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOSTM PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features Support for APP Center - Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. at BIOS EasyTune Fast Boot Game Boost ON/OFF Charge Ambient LED Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Operating System Support for Windows 10 64-bit |
| Form Factor Micro ATX Form Factor 24.4cm x 22.5cm |
| Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website. 2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 Weight 3.00LB Warranty Information 3 YEARS Manufacture |
