ASUS PRIME H470M-PLUS/CSM LGA 1200 Intel 10th gen. H470 DDR4 128GB DisplayPort/ HDMI/ DVI-D mATX Motherboard
$153.87
Was: $184.64
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
14074
Brand:
ASUS TeK
Mfg Sku:
PRIME H470M-PLUS/CSM
Share to:
Specification
ASUS PRIME H470M-PLUS/CSM LGA 1200 Intel 10th gen. H470 DDR4 128GB DisplayPort/ HDMI/ DVI-D mATX Motherboard
Detail Specifications
| CPU Intel Socket LGA1200 for 10th Gen Intel CoreTM, Pentium Gold and Celeron processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset Intel H470 Chipset |
| Memory 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem For 10th Gen Intel processors, only CoreTM i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. |
| Graphics 1 x DisplayPort 1.4 1 x HDMITM 1.4b 1 x DVI-D Graphics specifications may vary between CPU types. Support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. |
| Expansion Slots Intel 10th Gen Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) Intel H470 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Multi-GPU Support Supports AMD CrossFireXTM Technology Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports |
| Storage Intel H470 Chipset M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA at PCIe 3.0 x4 mode) 5 x SATA 6Gb/s ports Intel Rapid Storage Technology supports Raid 0,1,5,10 Intel OptaneTM Memory Ready When a device in SATA mode is installed on the M.2_2 socket, SATA6G_1 port cannot be used. |
| Ethernet 1 x Intel 1219V 1Gb Ethernet |
| USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 8 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback Audio Features - LED-illuminated audio trace path design - Premium Japanese audio capacitors - Audio Shielding - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 8-channel audio output. |
| Back I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x DVI-D port 1 x HDMITM 1 x Intel I219V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 5 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1pin) |
| Special Features ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility - EPU - Digi+ VRM - EZ update - Fan Xpert 4 AI Charger WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability WOL by PME, PXE |

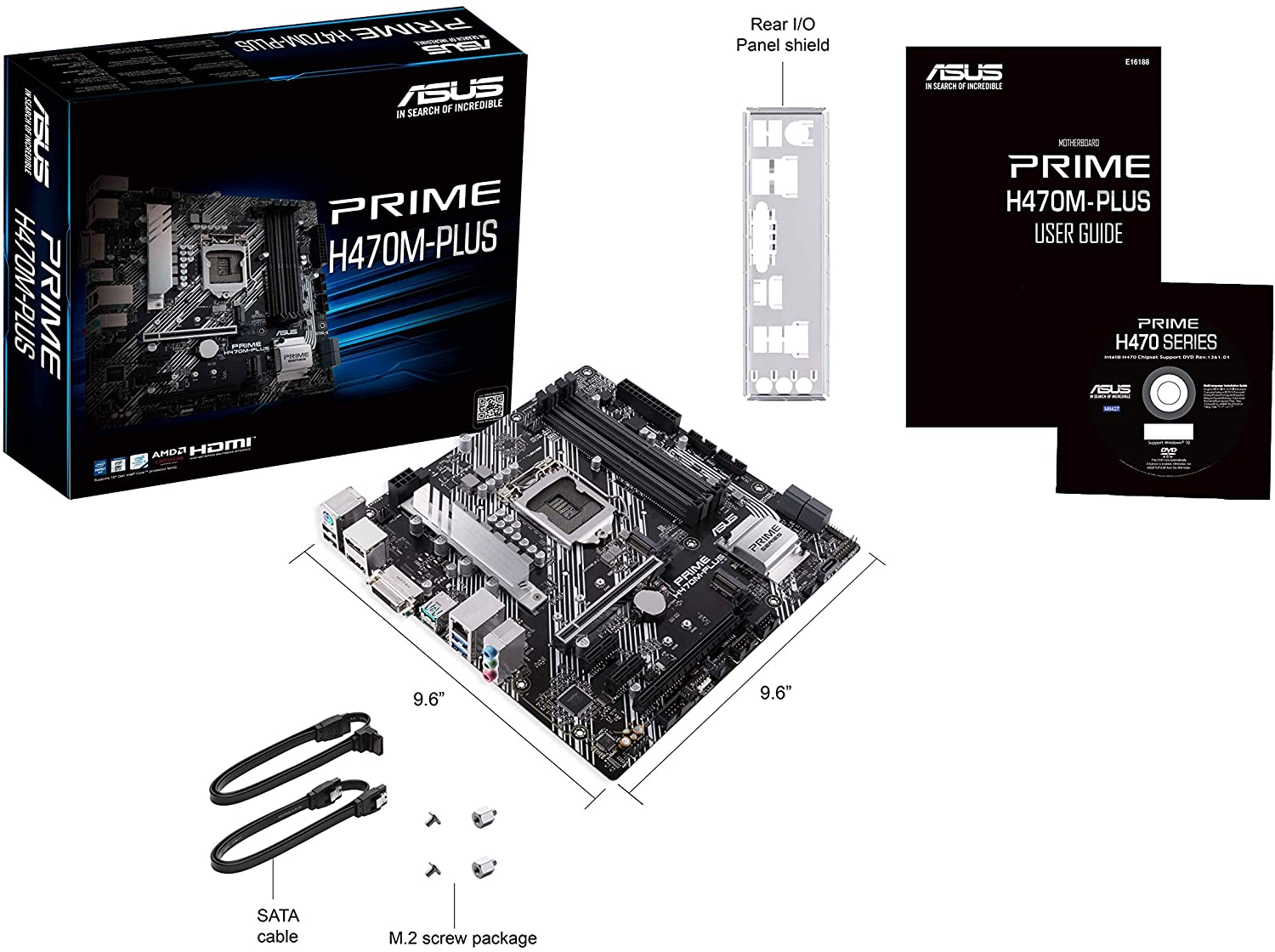

| Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Operating System Windows 10 - 64 bit |
| Form Factor mATX Form Factor |
| Item Dimension (L"x W"x H") 11 x 11 x 3 Weight 3.00 LB Warranty Information 3 years Manufacture Warranty |
