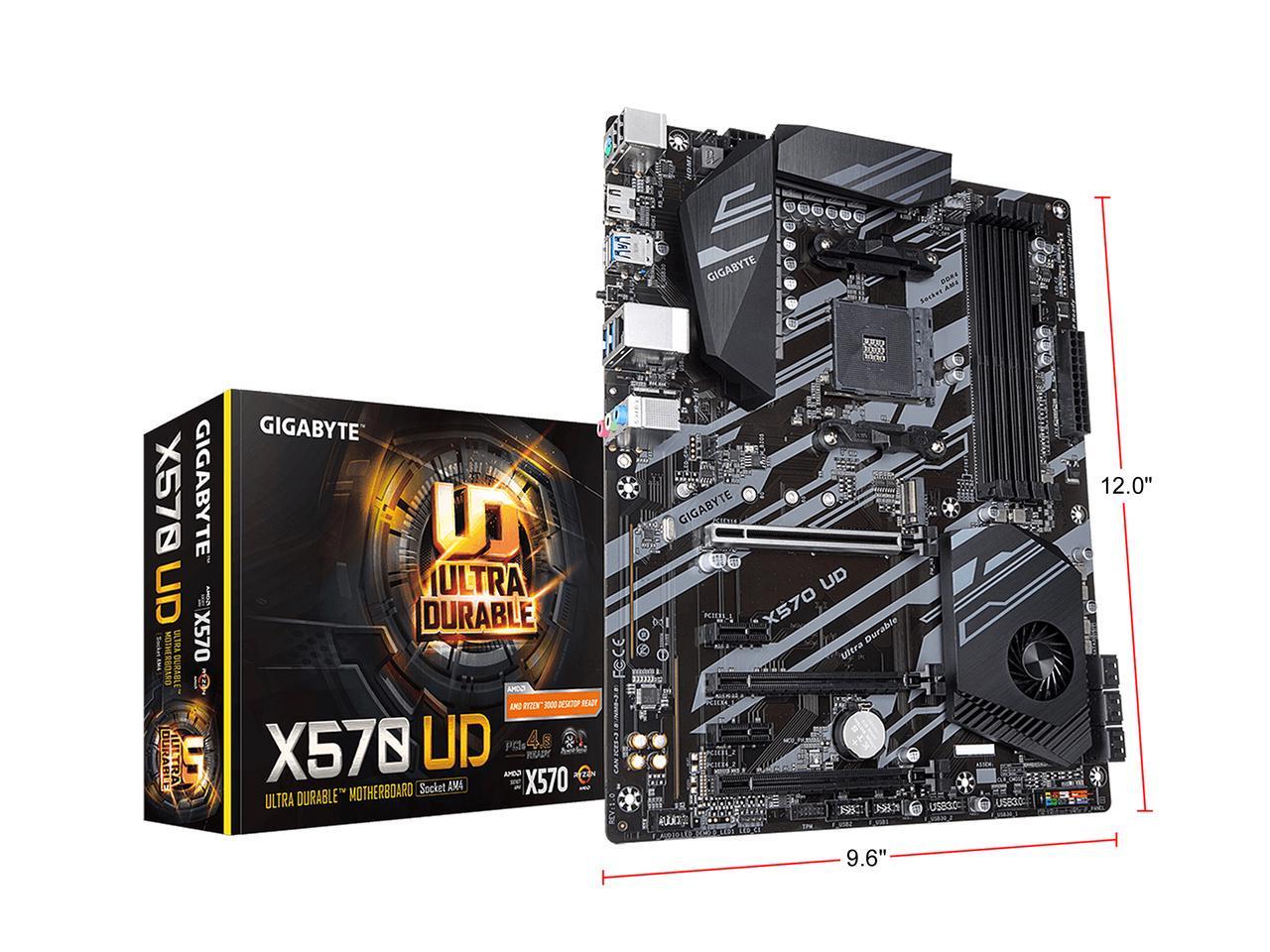

Gigabyte X570 UD AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570 / Radeon Vega Gaphics / ATX Motherboard
$212.35
Was: $254.82
Availability:
In Stock
Richmond BC Warehouse:
0
Toronto ON Warehouse:
0
Product Code:
13391
Brand:
Gigabyte
Mfg Sku:
X570 UD
Share to:
Specification
Gigabyte X570 UD AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570 / Radeon Vega Gaphics / ATX Motherboard
Specifications
Brand
GIGABYTE
Model
X570 UD
Supported CPU
CPU Socket Type
AM4
CPU Type
AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors
Chipsets
Chipset
AMD X570
Memory
Number of Memory Slots
4×288pin
Memory Standard
3rd Generation AMD Ryzen processors:
Support for DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
Support for DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 4.0 x16
Integrated in the CPU (PCIEX16):
- 3rd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- 2nd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1)
2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen processors only.
PCI Express x1
2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
* For 3rd Generation AMD Ryzen processors only.
Storage Devices
SATA 6Gb/s
6 x SATA 6Gb/s
M.2
Integrated in the CPU:
- 3rd Generation AMD Ryzen processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
- 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Maximum shared memory of 16GB
Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors only.
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
2/4/5.1-channel
Onboard LAN
LAN Chipset
Realtek GbE LAN chip
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
304.80 mm x 243.84 mm
Power Pin
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features
Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Note: For 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors only.
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System:
Support for Windows 10 64-bit
