ASUS TUF GAMING X570-PLUS Wi-Fi AMD AM4 Ryzen X570 PCIe 4.0 ATX AMD Motherboard

$266.92
Was: $320.3
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
13347
Brand:
ASUS TeK
Mfg Sku:
TUF GAMING X570-PLUS WI-FI


Share to:

Specification

ASUS AM4 TUF Gaming X570-Plus (Wi-Fi) ATX Motherboard with PCIe 4.0, Dual M.2, 12+2 with Dr. MOS Power Stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB Lighting

UPC: 192876388495



  • CPU
    AMD AM4 Socket 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™ Processors
  • Chipset
    AMD X570
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
    - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
  • Multi-GPU Support
    3rd and 2nd Gen AMD Ryzen™ Processors
    AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
    Supports AMD CrossFireX™ Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    1 x PCIe 4.0 x16 (x16 mode)
    2nd Gen AMD Ryzen™ Processors
    1 x PCIe 3.0 x16 (x16 mode)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16 (max at x4 mode)
    2 x PCIe 4.0 x1
  • Storage
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD X570 chipset :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    8 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
  • LAN
    Realtek® L8200A
    ASUS Turbo LAN Utility
    TUF LANGuard
  • Wireless Data Network
    Intel® Wireless-AC 9260
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth
    Bluetooth® 5.0
  • Audio
    Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
  • USB Ports
    3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
    AMD X570 chipset :
    3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)
    AMD X570 chipset :
    2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
    AMD X570 chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
  • Special Features
    ASUS TUF PROTECTION
    - ASUS SafeSlot: Protect your graphics card Investment
    - ASUS ESD Guard: Enhanced ESD protection
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: Precision control for stable power
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Addressable Gen 2 Header
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution :
    - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
    - ASUS Fan Xpert 4
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    DIY Friendly Design
    - Procool
    - SafeSlot
    - Digi+ VRM
    - Highly Durable components
    - ESD Guards
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports
    3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
    ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
  • Internal I/O Ports
    2 x Aura RGB Strip Header(s)
    1 x Addressable Gen 2 header(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x SPI TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x COM port header
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

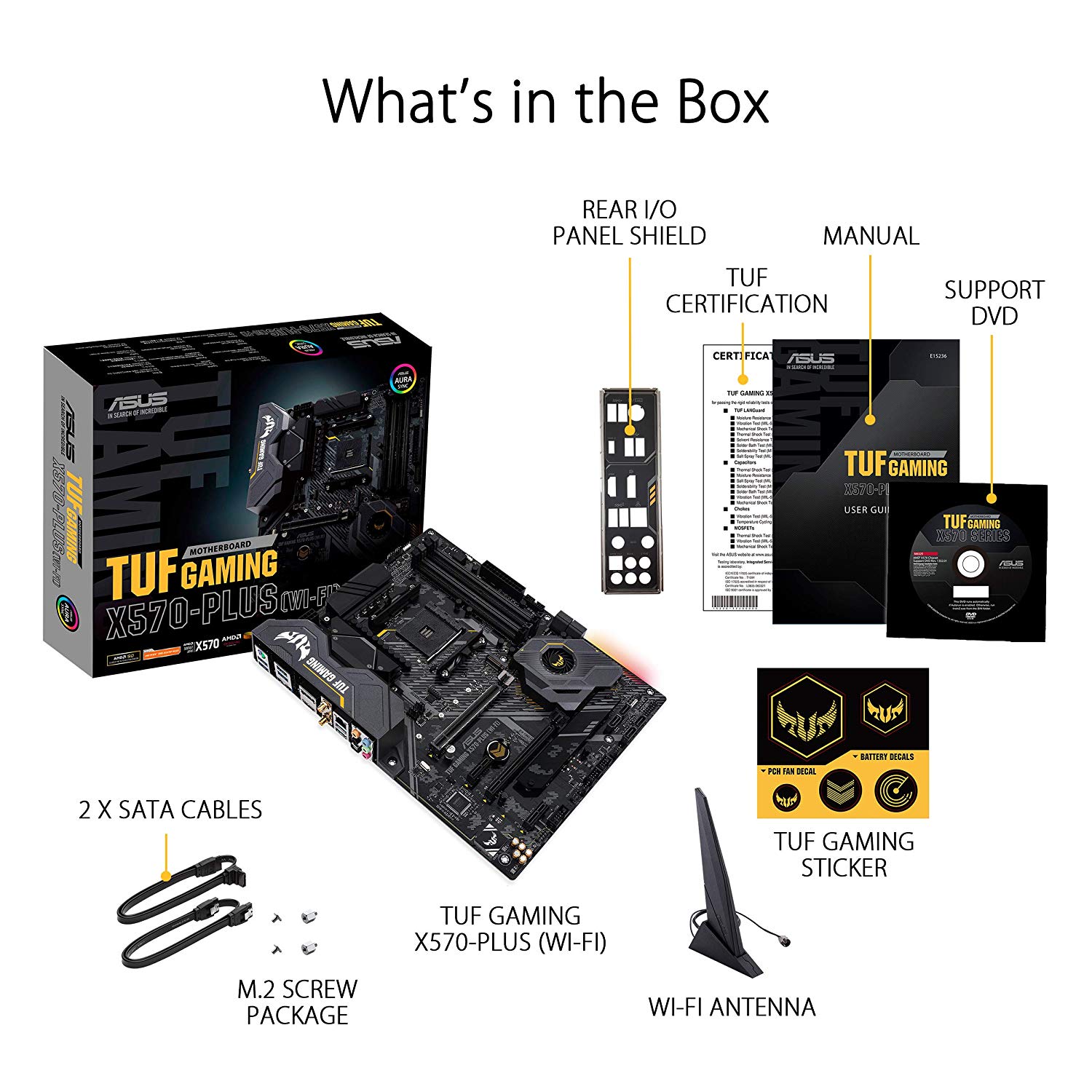

  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x TUF GAMING Sticker
    1 x TUF Certification card(s)
  • BIOS
    256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
