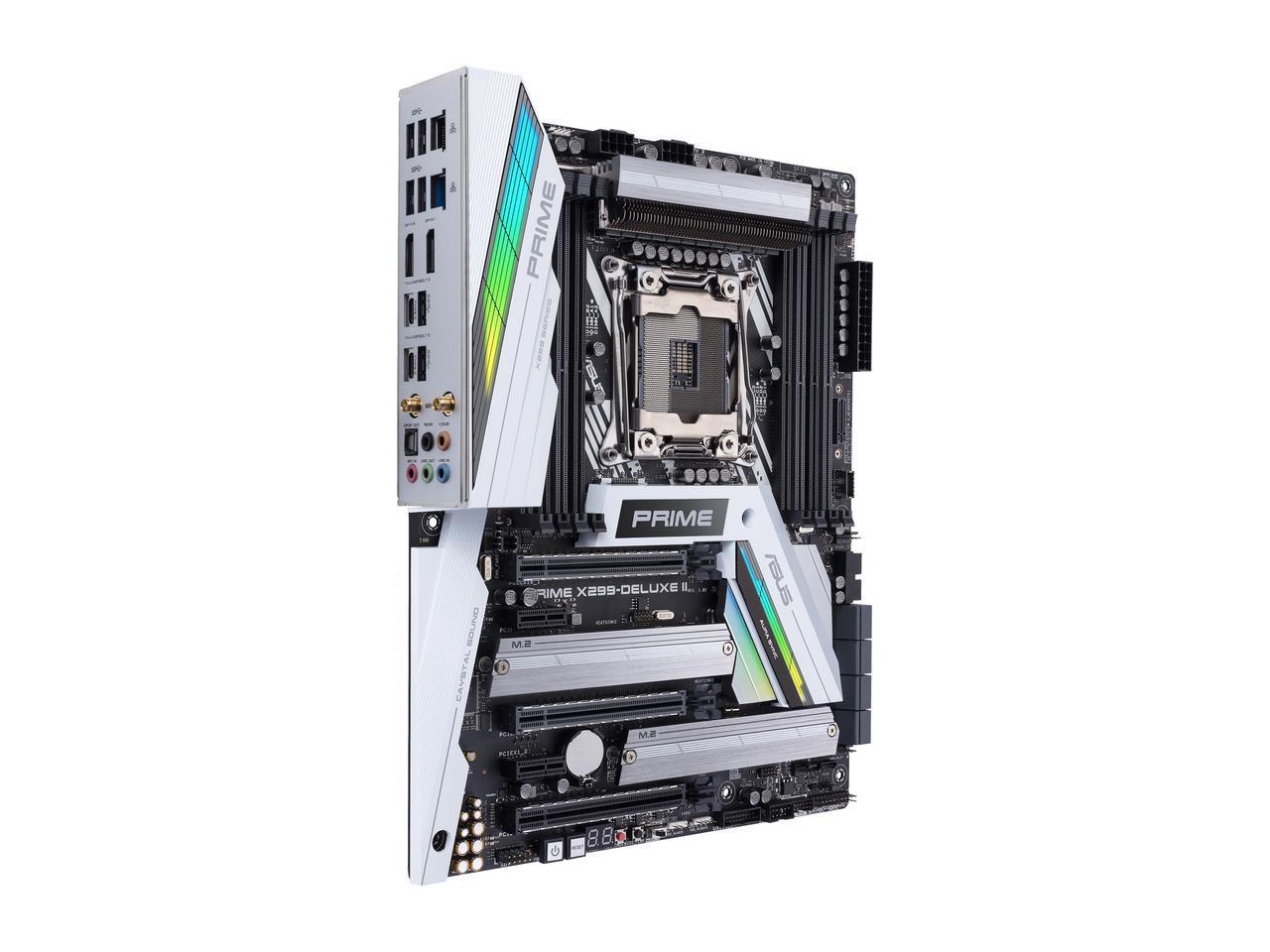

Asus Prime X299-Deluxe II Core X-series LGA 2066 Intel X299 Max 128GB DDR4 USB 3.1 / Wi-Fi ATX Intel Motherboard
$628.21
Was: $753.85
Availability:
In Stock
Richmond BC Warehouse:
0
Toronto ON Warehouse:
0
Product Code:
13042
Brand:
ASUS TeK
Mfg Sku:
PRIME X299-DELUXE II
Share to:
Specification
Asus Prime X299-Deluxe II Core X-series LGA 2066 Intel X299 Max 128GB DDR4 USB 3.1 ATX / Wifi Intel Motherboard
Detail Specifications
| CPU Intel Socket 2066 CoreTM X-Series Processors NOTE: The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types NOTE: Refer to www.asus.com for CPU support list |
| Chipset Intel X299 |
| Memory - Intel CoreTM X-series Processors (6-core above) - 8 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory - Supports Intel Extreme Memory Profile (XMP) NOTE: Hyper DIMM support is subject to the physical characteristics of individual CPUs. NOTE: Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Thunderbolt - 2 x Intel ThunderboltTM 3 ports(TypeCTM) support DisplayPort and ThunderboltTM video outputs - Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/at 60 HzNOTE (NOTE: VGA resolution support depends on VGA cards resolution.) - Data transfer rate up to 40 Gbps - Daisy-chain up to 12 Thunderbolt devices - Up to 5V/3A, 15W charging support |
| Multi-GPU Support - Supports NVIDIA Quad-GPU SLITM Technology - Supports NVIDIA 3-Way SLITM Technology - Supports NVIDIA 2-Way SLITM Technology - Supports AMD Quad-GPU CrossFireXTM Technology - Supports AMD 3-Way CrossFireXTM Technology |
| Expansion Slots 44-Lane CPU- - 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) - 2 x PCIe 3.0/2.0 x1 Note1 28-Lane CPU- - 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) - 1 x PCIe 3.0/2.0 x16 (x2 mode) Note2 - 2 x PCIe 3.0/2.0 x1 Note1 |
| Storage - Intel X299 Chipset : 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode and X4 PCIE mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s)Note1 Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports - Intel CoreTM X-series Processors (6-core above) : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology Enterprise supports Intel OptaneTM Memory Ready |
| LAN - Aquantia AQC111C 5G LAN - Intel I219V, 1 x Gigabit LAN - ASUS Turbo LAN Utility - ASUS LAN Guard |
| Wireless Data Network - Intel Wireless-AC 9260 - Wi-Fi 802.11 a/b/g/n/ac - Supports dual band frequency 2.4/5 GHz - Supports MU-MIMO - Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth - Bluetooth 5.0 |
| Audio Realtek S1220A 8-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs |
| USB Ports Intel ThunderboltTM 3 Controller : - 2 x USB 3.1 Gen 2 port(s) (USB Type-CTM) ASMedia USB 3.1 Gen 2 controller : Note1 - 1 x USB 3.1 Gen 2 front panel connector port(s) Intel X299 Chipset : -5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board) Intel X299 Chipset : - 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) ASMedia USB 3.1 Gen 1 Hub : - 3 x USB 3.1 Gen 1 port(s) (3 at back panel, ) |
| Special Features OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI+ VRM: 12 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection 2 " LiveDash AURA : - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback - MemOK II - AI Suite 3 - Ai Charger - Onboard Button : Power/Reset - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Pre- mounted I/O shield - ASUS NODE : hardware control interface ASUS Quiet Thermal Solution : - Stylish Design Heat-pipe solution - Stylish Fanless Design with M.2 Heat-sink solution ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector DIY Friendly Design - Procool - SafeSlot Q-Installer - Auto download driver and software. Friendly for first PC builder. |
| Back I/O Ports 2 x Thunderbolt 3 ports TypeCTM 2 x DisplayPort IN ports for ThunderboltTM 3 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi GO module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0 1 x AQC-111C 5G LAN port |
| Internal I/O Ports 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x MemOK II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Node Connector(s) 1 x USB BIOS Flashback button(s) 1 x USB 3.1 Gen 2 front panel connector 1 x Q-Code |

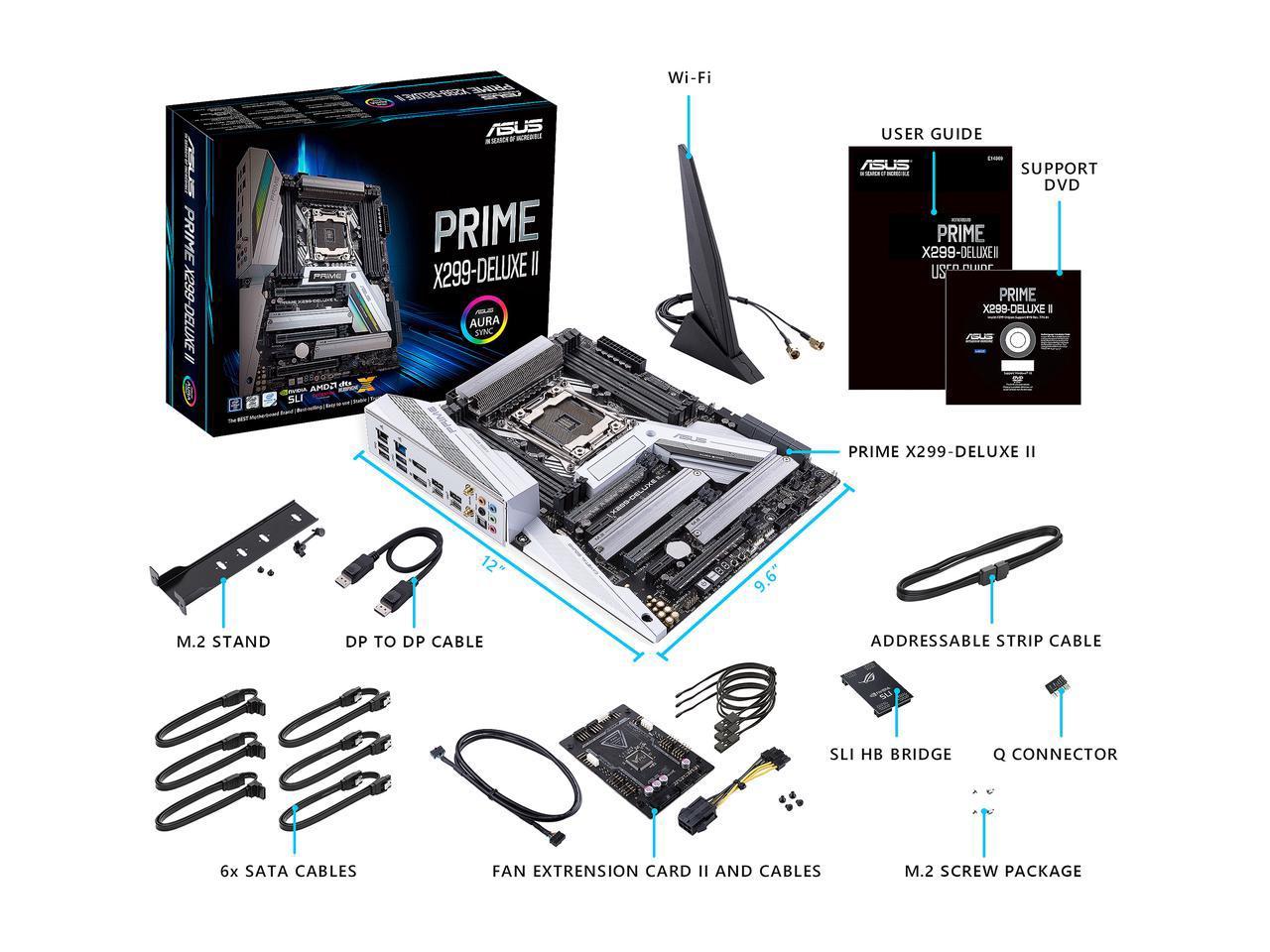

| Accessories Users manual 1 x Vertical M.2 bracket set 6 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x DisplayPort cable 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x CPU Fan Holder BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Support Disc Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| Operating System Windows 10 64-bit |
| Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note Note 1. PCIEX1_1 shares bandwidth with USB 3.1 Gen 2 front panel connector(U31G2_E1). It is disabled by default. PCIEX1_2 shares bandwidth with SATA6G_7. Note 2. SATA6G_5 and SATA6G_6 shares bandwidth with PCIEX16_3 when using 28-lane CPU. |
| Item Dimension(L inchxW inchxH inch) 15 x 13 x 5 Weight 8.00lb Warranty Information 3 Year Warranty (Manufacture) |
