Asus Prime A320M-A AMD Ryzen AM4 A320 DDR4 HDMI / DVI-D / VGA SATA 6Gb/s USB 3.1 Micro ATX AMD Motherboard
$92.02
Was: $110.42
Availability:
In Stock
Richmond BC Warehouse:
0
Toronto ON Warehouse:
0
Product Code:
12639
Brand:
ASUS
Mfg Sku:
PRIME A320M-A
Share to:
Specification
Asus Prime A320M-A AMD Ryzen AM4 A320 DDR4 HDMI / DVI-D / VGA SATA 6Gb/s USB 3.1 Micro ATX AMD Motherboard
Detail Specifications
| CPU AMD AM4 Socket for AMD RyzenTM/7th Generation A-series/AthlonTM Processors Supports CPU up to 8 cores |
| Chipset AMD A320 |
| Memory AMD RyzenTM Processors : 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-series/AthlonTM Processors : 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Graphic Integrated AMD RadeonTM R Series Graphics in the 7th Generation A-Series APU Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz - Supports RGB with max. resolution 1920 x 1200 at 60 Hz Maximum shared memory of 2048 MB |
| Expansion Slots AMD RyzenTM Processors : 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/AthlonTM Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD A320 chipset : 2 x PCIe 2.0 x1 |
| Storage AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD RyzenTM/7th Generation A-series/AthlonTM Processors : 2 x SATA 6Gb/s port(s), gray, AMD RyzenTM Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 4 mode) AMD 7th Generation A-series/AthlonTM Processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 x 2 mode) |
| LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC |
| USB Ports AMD RyzenTM/7th Generation A-series/AthlonTM Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD A320 chipset : 6 x USB 2.0 port(s) |
| Special Features ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Operating System Support Windows 10 , 64bit |
| Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode PCIE mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |

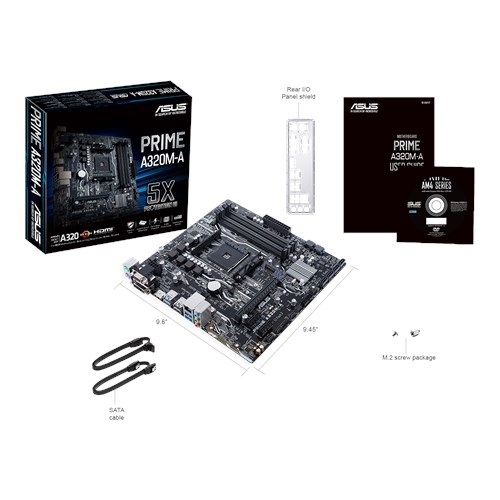

| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Operating System Windows 10 64-bit |
| Form Factor Micro ATX Form Factor 9.6 inch x 9.45 inch ( 24.4 cm x 24 cm ) |
| Note 1. Due to the limitation of AMD RyzenTM processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. 2. AMD RyzenTM Processor does not support. 3. When a SATA / PCIE mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports. 4. When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_5/6 ports |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 Weight 3.00lb Warranty Information 3 Year Warranty (Manufacture) |
