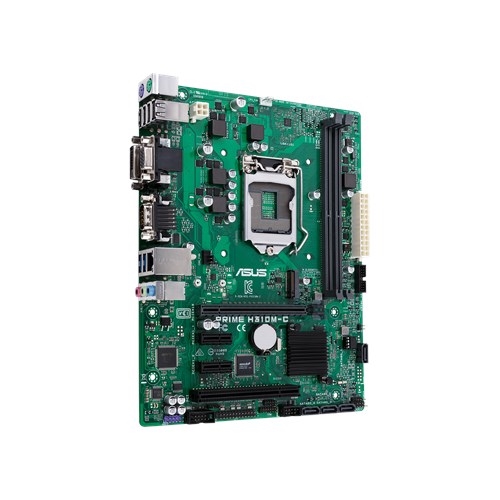

ASUS Prime H310M-C/CSM H310 DDR4 PCIE SATA USB 3.1 VGA / DVI / m.2 mATX Coffee Lake 8th gen. Motherboard
$98.23
Was: $117.88
Availability:
In Stock
Richmond BC Warehouse:
Toronto ON Warehouse:
Product Code:
12425
Brand:
ASUS
Mfg Sku:
PRIME H310M-C/CSM
Share to:
Specification
ASUS Prime H310M-C/CSM H310 DDR4 PCIE SATA USB 3.1 VGA / DVI / m.2 mATX Coffee Lake Motherboard
Detail Specifications
| CPU Intel for 8th Generation Core Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset Intel H310 |
| Memory 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) |
| Graphic Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz - Supports RGB with max. resolution 1920 x 1200 at 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports up to 2 displays simultaneously |
| Expansion Slots 1 x PCIe 3.0/2.0 x16 2 x PCIe 2.0 x1 1 x PCI |
| Storage Intel H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA and PCIE mode) 4 x SATA 6Gb/s port(s) |
| LAN Realtek RTL8111H, 1 x Gigabit LAN Controller(s) |
| Audio Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking |
| USB Ports Intel H310 Chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) Intel H310 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board) |
| Special Features Bespoke Motherboard Design and Business Focused Features : - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion - prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45oC and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Fixed-position and Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage Digi+VRM |
| Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2260/2280 devices 1 x LPT header 2 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x LPC Debug header 1 x Speaker connector |
| Accessories Users manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit |
| Manageability WOL, PXE |
| Support Disc Drivers ASUS Commercial BIOS Kits ASUS Watchdog Timer |
| Form Factor uATX Form Factor 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm ) |
| Item Dimension (L"xW"xH") 11 x 13 x 3 Weight 3 lbs Warranty Information 3 Years Manufacture |
